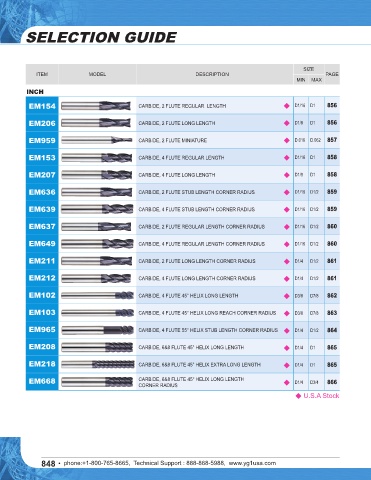

SELECTION GUIDE SOLID CARBIDE X-POWER END MILLS

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
INCH
EM154 CARBIDE, 2 FLUTE REGULAR LENGTH ◆ D1/16 D1 856 ○ ◎ ◎ ◎ ○ ○ ○

EM206 CARBIDE, 2 FLUTE LONG LENGTH ◆ D1/8 D1 856 ○ ◎ ◎ ◎ ○ ○ ○

EM959 CARBIDE, 2 FLUTE MINIATURE ◆ D.016 D.062 857 ○ ◎ ◎ ◎ ○ ○

EM153 CARBIDE, 4 FLUTE REGULAR LENGTH ◆ D1/16 D1 858 ○ ◎ ◎ ◎ ○ ○ ○

EM207 CARBIDE, 4 FLUTE LONG LENGTH ◆ D1/8 D1 858 ○ ◎ ◎ ◎ ○ ○

EM636 CARBIDE, 2 FLUTE STUB LENGTH CORNER RADIUS ◆ D1/16 D1/2 859 ○ ◎ ◎ ◎ ○

EM639 CARBIDE, 4 FLUTE STUB LENGTH CORNER RADIUS ◆ D1/16 D1/2 859 ○ ◎ ◎ ◎ ○ ○ ○

EM637 CARBIDE, 2 FLUTE REGULAR LENGTH CORNER RADIUS ◆ D1/16 D1/2 860 ○ ◎ ◎ ◎ ○

EM649 CARBIDE, 4 FLUTE REGULAR LENGTH CORNER RADIUS ◆ D1/16 D1/2 860 ○ ◎ ◎ ◎ ○ ○ ○

EM211 CARBIDE, 2 FLUTE LONG LENGTH CORNER RADIUS ◆ D1/4 D1/2 861 ○ ◎ ◎ ◎

EM212 CARBIDE, 4 FLUTE LONG LENGTH CORNER RADIUS ◆ D1/4 D1/2 861 ○ ◎ ◎ ◎ ○ ○ ○

EM102 CARBIDE, 4 FLUTE 45° HELIX LONG LENGTH ◆ D3/8 D7/8 862 ○ ◎ ◎ ◎ ○ ○ ○

EM103 CARBIDE, 4 FLUTE 45° HELIX LONG REACH CORNER RADIUS ◆ D3/8 D7/8 863 ○ ◎ ◎ ◎ ○ ○ ○

EM965 CARBIDE, 4 FLUTE 55° HELIX STUB LENGTH CORNER RADIUS ◆ D1/4 D1/2 864 ○ ◎ ◎ ◎ ○ ○ ○

EM208 CARBIDE, 6&8 FLUTE 45° HELIX LONG LENGTH ◆ D1/4 D1 865 ○ ◎ ◎ ◎ ○ ○

EM218 CARBIDE, 6&8 FLUTE 45° HELIX EXTRA LONG LENGTH ◆ D1/4 D1 865 ○ ◎ ◎ ◎ ○ ○

EM668 CARBIDE, 6&8 FLUTE 45° HELIX LONG LENGTH ◆ D1/4 D3/4 866 ○ ◎ ◎ ◎ ○ ○
CORNER RADIUS
◆ U.S.A Stock
