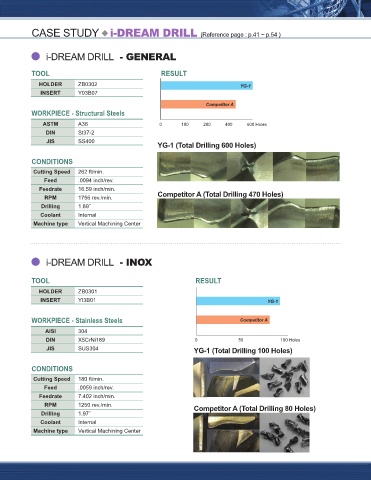

MILLING CASE STUDY i-DREAM DRILL (Reference page : p.41 ~ p.54 )
◆

PRODUCTS DESCRIPTION PAGE
i-DREAM DRILL - GENERAL

TANK-POWER - Next Generation of Powdered Metal End Mills TOOL RESULT
HSS-PM END MILLS - Higher Edge Strength & Feed Rates 1193 HOLDER ZB0302
INSERT Y03B07

Competitor A
WORKPIECE - Structural Steels
- General Purpose, Non-coated, Any Coating
COBALT & HSS END MILLS 1211 ASTM A36 0 100 200 400 600 Holes
Available
DIN St37-2
JIS SS400
YG-1 (Total Drilling 600 Holes)

CONDITIONS
TECHNICAL DATA 1295
Cutting Speed 262 ft/min.
Feed .0094 inch/rev.
Feedrate 16.59 inch/min.
RPM 1756 rev./min. Competitor A (Total Drilling 470 Holes)
Drilling 1.89˝
Coolant Internal
Machine type Vertical Machining Center

i-DREAM DRILL - INOX
OTHER TOOLS

TOOL RESULT
PRODUCTS DESCRIPTION PAGE
HOLDER ZB0301
INSERT YI3B01

TOOL HOLDERS - According to CAT + BT Standards 1305
WORKPIECE - Stainless Steels Competitor A
AISI 304
DIN X5CrNi189 0 50 100 Holes
JIS SUS304 YG-1 (Total Drilling 100 Holes)

CONDITIONS
Cutting Speed 180 ft/min.
Feed .0059 inch/rev.
Feedrate 7.402 inch/min.
RPM 1250 rev./min. Competitor A (Total Drilling 80 Holes)
Drilling 1.97˝
Coolant Internal
Machine type Vertical Machining Center
