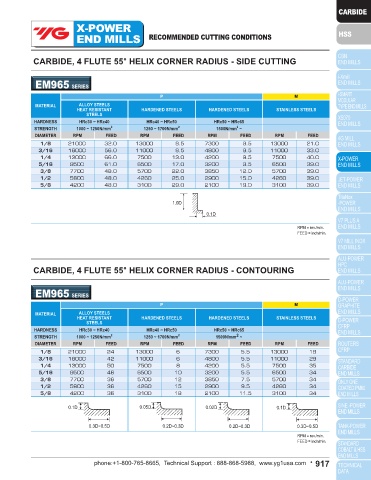

Page 917 - YG 2019

X-POWER X-POWER
END MILLS RECOMMENDED CUTTING CONDITIONS END MILLS RECOMMENDED CUTTING CONDITIONS

CARBIDE, 4 FLUTE 45° HELIX CORNER RADIUS - SIDE CUTTING CARBIDE, 4 FLUTE 55° HELIX CORNER RADIUS - SIDE CUTTING

EM103, EM905 SERIES EM965 SERIES
P M P M
MATERIAL NON-ALLOYED STEELS ALLOY STEELS MATERIAL ALLOY STEELS
ALLOY STEELS HEAT RESISTANT HARDENED STEELS HARDENED STEELS STAINLESS STEELS HEAT RESISTANT HARDENED STEELS HARDENED STEELS STAINLESS STEELS
CAST IRON STEELS STEELS
HARDNESS ~ HRc30 HRc30 ~ HRc45 HRc45 ~ HRc55 HRc55 ~ HRc65 HARDNESS HRc30 ~ HRc40 HRc40 ~ HRc50 HRc50 ~ HRc65
2
2
STRENGTH ~ 1000N/mm 2 1000 ~ 1500N/mm 2 1500 ~ 2000N/mm 2 2000N/mm ~ STRENGTH 1000 ~ 1250N/mm 2 1250 ~ 1700N/mm 2 1500N/mm ~
DIAMETER RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED DIAMETER RPM FEED RPM FEED RPM FEED RPM FEED
3/8 7690 79.0 7690 48.0 5680 29.0 3840 19.0 5680 36.0 1/8 21000 32.0 13000 9.5 7300 9.5 13000 21.0
1/2 5760 79.0 5760 48.0 4260 29.0 2880 19.0 4260 36.0 3/16 18000 56.0 11000 9.5 4800 9.5 11000 33.0
5/8 4600 71.0 4600 48.0 3410 29.0 2300 19.0 3410 36.0 1/4 13000 66.0 7500 13.0 4200 9.5 7500 40.0
3/4 3850 60.0 3850 48.0 2840 29.0 1920 19.0 2840 36.0 5/16 9500 61.0 6500 17.0 3200 9.5 6500 39.0
7/8 3300 51.0 3300 48.0 2430 29.0 1650 19.0 2430 36.0 3/8 7700 48.0 5700 22.0 3850 12.0 5700 39.0
1/2 5800 48.0 4260 25.0 2900 15.0 4260 39.0
5/8 4200 48.0 3100 29.0 2100 19.0 3100 39.0
1.5D 1.5D
0.05D 0.05D
1.0D
RPM = rev./min. 0.1D
FEED = inch/min.
RPM = rev./min.
FEED = inch/min.

CARBIDE, 4 FLUTE 45° HELIX CORNER RADIUS - CONTOURING CARBIDE, 4 FLUTE 55° HELIX CORNER RADIUS - CONTOURING

EM103, EM905 SERIES EM965 SERIES
P M P M
MATERIAL NON-ALLOYED STEELS ALLOY STEELS MATERIAL ALLOY STEELS
ALLOY STEELS HEAT RESISTANT HARDENED STEELS HARDENED STEELS STAINLESS STEELS HEAT RESISTANT HARDENED STEELS HARDENED STEELS STAINLESS STEELS
CAST IRON STEELS STEELS
HARDNESS ~ HRc30 HRc30 ~ HRc45 HRc45 ~ HRc55 HRc55 ~ HRc65 HARDNESS HRc30 ~ HRc40 HRc40 ~ HRc50 HRc50 ~ HRc65
2
2
STRENGTH ~ 1000N/mm 2 1000 ~ 1500N/mm 2 1500 ~ 2000N/mm 2 2000N/mm ~ STRENGTH 1000 ~ 1250N/mm 2 1250 ~ 1700N/mm 2 1500N/mm ~
DIAMETER RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED DIAMETER RPM FEED RPM FEED RPM FEED RPM FEED
3/8 7690 45.0 5680 36.0 5680 18.0 3840 11.0 5680 31.0 1/8 21000 24 13000 6 7300 5.5 13000 18
1/2 5760 45.0 4260 36.0 4260 18.0 2880 11.0 4260 31.0 3/16 18000 42 11000 6 4800 5.5 11000 29
5/8 4600 45.0 3410 36.0 3410 18.0 2300 11.0 3410 31.0 1/4 13000 50 7500 8 4200 5.5 7500 35
3/4 4850 45.0 2840 36.0 2840 18.0 1920 11.0 2840 31.0 5/16 9500 46 6500 10 3200 5.5 6500 34
7/8 3300 45.0 2430 36.0 2430 18.0 1650 11.0 2430 31.0 3/8 7700 36 5700 12 3850 7.5 5700 34
1/2 5800 36 4260 15 2900 9.5 4260 34
0.1D 0.05D 0.02D 0.1D 5/8 4200 36 3100 18 2100 11.5 3100 34

0.1D 0.05D 0.02D 0.1D
0.3D~0.5D 0.2D~0.3D 0.2D~0.3D 0.3D~0.5D
RPM = rev./min.
FEED = inch/min. 0.3D~0.5D 0.2D~0.3D 0.2D~0.3D 0.3D~0.5D
RPM = rev./min.
FEED = inch/min.
