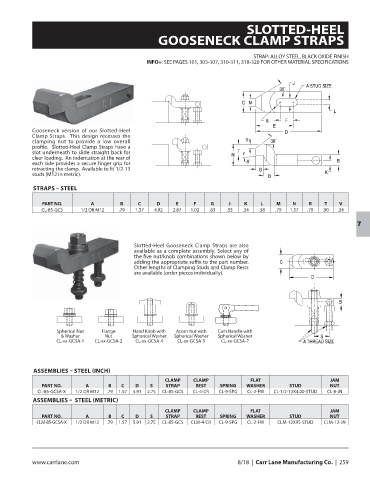

Page 261 - CarrLaneCatalog_2019ed-c.pdf

SLOTTED-HEEL
GOOSENECK CLAMP STRAPS

STRAP: ALLOY STEEL, BLACK OXIDE FINISH
INFO+: SEE PAGES 101, 303-307, 310-311, 318-320 FOR OTHER MATERIAL SPECIFICATIONS

Gooseneck version of our Slotted-Heel
Clamp Straps. This design recesses the
clamping nut to provide a low overall
profile. Slotted-Heel Clamp Straps have a
slot underneath to slide straight back for
clear loading. An indentation at the rear of
each side provides a secure finger grip for
retracting the clamp. Available to fit 1/2-13
studs (M12 in metric).

STRAPS – STEEL

PART NO. A B C D E F G J K L M N R T V
CL-85-GCS 1/2 OR M12 .79 1.57 4.92 2.87 1.02 .63 .55 .34 .38 .79 1.57 .79 .90 .34

7

Slotted-Heel Gooseneck Clamp Straps are also
available as a complete assembly. Select any of
the five nut/knob combinations shown below by
adding the appropriate suffix to the part number.
Other lengths of Clamping Studs and Clamp Rests
are available (order pieces individually).

Spherical Nut Flange Hand Knob with Acorn Nut with Cam Handle with
& Washer Nut Spherical Washer Spherical Washer Spherical Washer
CL-xx-GCSA-1 CL-xx-GCSA-2 CL-xx-GCSA-4 CL-xx-GCSA-5 CL-xx-GCSA-7

ASSEMBLIES – STEEL (INCH)
CLAMP CLAMP FLAT JAM
PART NO. A B C D S STRAP REST SPRING WASHER STUD NUT
CL-85-GCSA-X 1/2 OR M12 .79 1.57 5.91 2.75 CL-85-GCS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13X4.00-STUD CL-8-JN
ASSEMBLIES – STEEL (METRIC)
CLAMP CLAMP FLAT JAM
PART NO. A B C D S STRAP REST SPRING WASHER STUD NUT
CLM-85-GCSA-X 1/2 OR M12 .79 1.57 5.91 2.75 CL-85-GCS CLM-4-CR CL-9-SPG CL-2-FW CLM-12X95-STUD CLM-12-JN
