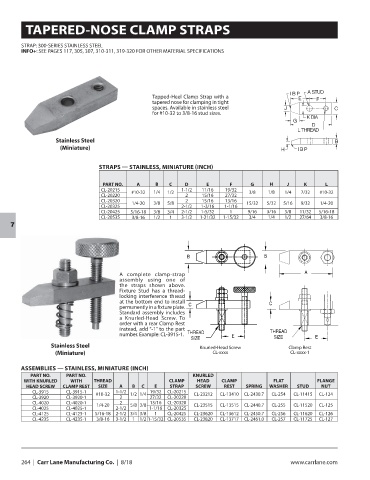

TAPERED-NOSE CLAMP STRAPS

STRAP: 300-SERIES STAINLESS STEEL
INFO+: SEE PAGES 117, 305, 307, 310-311, 319-320 FOR OTHER MATERIAL SPECIFICATIONS

Tapped-Heel Clamp Strap with a
tapered nose for clamping in tight
spaces. Available in stainless steel
for #10-32 to 3/8-16 stud sizes.

Stainless Steel
(Miniature)

STRAPS — STAINLESS, MINIATURE (INCH)

PART NO. A B C D E F G H J K L
CL-20215 #10-32 1/4 1/2 1-1/2 11/16 19/32 3/8 1/8 1/4 7/32 #10-32
CL-20220 2 15/16 27/32
CL-20320 1/4-20 3/8 5/8 2 15/16 13/16 15/32 5/32 5/16 9/32 1/4-20
CL-20325 2-1/2 1-3/16 1-1/16
CL-20425 5/16-18 3/8 3/4 2-1/2 1-5/32 1 9/16 3/16 3/8 11/32 5/16-18
CL-20535 3/8-16 1/2 1 3-1/2 1-21/32 1-15/32 3/4 1/4 1/2 27/64 3/8-16

7

A complete clamp-strap
assembly using one of
the straps shown above.
Fixture Stud has a thread-
locking interference thread
at the bottom end to install
permanently in a fixture plate.
Standard assembly includes
a Knurled-Head Screw. To
order with a rear Clamp Rest
instead, add “-1” to the part
number. Example: CL-3915-1.

Stainless Steel Knurled-Head Screw Clamp Rest
(Miniature) CL-xxxx CL-xxxx-1

ASSEMBLIES — STAINLESS, MINIATURE (INCH)
PART NO. PART NO. KNURLED
WITH KNURLED WITH THREAD CLAMP HEAD CLAMP FLAT FLANGE
HEAD SCREW CLAMP REST SIZE A B C E STRAP SCREW REST SPRING WASHER STUD NUT
CL-3915 CL-3915-1 #10-32 1-1/2 1/2 1/4 19/32 CL-20215 CL-23212 CL-13410 CL-2430.7 CL-254 CL-11415 CL-124
CL-3920 CL-3920-1 2 27/32 CL-20220
CL-4020 CL-4020-1 1/4-20 2 5/8 3/8 13/16 CL-20320 CL-23515 CL-13515 CL-2440.7 CL-255 CL-11520 CL-125
CL-4025 CL-4025-1 2-1/2 1-1/16 CL-20325
CL-4125 CL-4125-1 5/16-18 2-1/2 3/4 3/8 1 CL-20425 CL-23620 CL-13612 CL-2450.7 CL-256 CL-11620 CL-126
CL-4235 CL-4235-1 3/8-16 3-1/2 1 1/2 1-15/32 CL-20535 CL-23820 CL-13717 CL-2461.0 CL-257 CL-11725 CL-127
