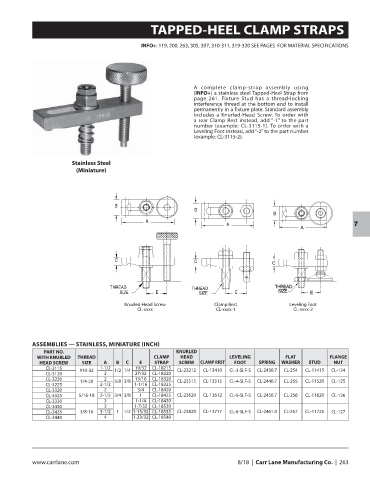

TAPPED-HEEL CLAMP STRAPS

INFO+: 119, 200, 263, 305, 307, 310-311, 319-320 SEE PAGES FOR MATERIAL SPECIFICATIONS

A complete clamp-strap assembly using
(INFO+) a stainless steel Tapped-Heel Strap from
page 261. Fixture Stud has a thread-locking
interference thread at the bottom end to install
permanently in a fixture plate. Standard assembly
includes a Knurled-Head Screw. To order with
a rear Clamp Rest instead, add “-1” to the part
number (example: CL-3115-1). To order with a
Leveling Foot instead, add “-2” to the part number
(example: CL-3115-2).

Stainless Steel
(Miniature)

7

Knurled-Head Screw Clamp Rest Leveling Foot
CL-xxxx CL-xxxx-1 CL-xxxx-2

ASSEMBLIES — STAINLESS, MINIATURE (INCH)
PART NO. KNURLED
WITH KNURLED THREAD CLAMP HEAD LEVELING FLAT FLANGE
HEAD SCREW SIZE A B C E STRAP SCREW CLAMP REST FOOT SPRING WASHER STUD NUT
CL-3115 #10-32 1-1/2 1/2 1/4 19/32 CL-18215 CL-23212 CL-13410 CL-3-SLF-S CL-2430.7 CL-254 CL-11415 CL-124
CL-3120 2 27/32 CL-18220
CL-3220 1/4-20 2 5/8 3/8 13/16 CL-18320 CL-23515 CL-13515 CL-4-SLF-S CL-2440.7 CL-255 CL-11520 CL-125
CL-3225 2-1/2 1-1/16 CL-18325
CL-3320 2 3/4 CL-18420
CL-3325 5/16-18 2-1/2 3/4 3/8 1 CL-18425 CL-23620 CL-13612 CL-5-SLF-S CL-2450.7 CL-256 CL-11620 CL-126
CL-3330 3 1-1/4 CL-18430
CL-3430 3 1-7/32 CL-18530
CL-3435 3/8-16 3-1/2 1 1/2 1-15/32 CL-18535 CL-23820 CL-13717 CL-6-SLF-S CL-2461.0 CL-257 CL-11725 CL-127
CL-3440 4 1-23/32 CL-18540
