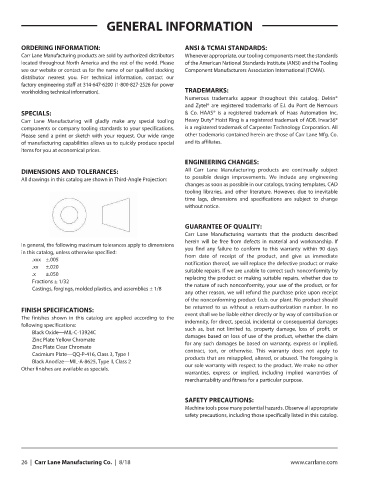

Page 28 - CarrLaneCatalog_2019ed-c.pdf

GENERAL INFORMATION

ORDERING INFORMATION: ANSI & TCMAI STANDARDS:
Carr Lane Manufacturing products are sold by authorized distributors Whenever appropriate, our tooling components meet the standards
located throughout North America and the rest of the world. Please of the American National Standards Institute (ANSI) and the Tooling
see our website or contact us for the name of our qualified stocking Component Manufacturers Association International (TCMAI).
distributor nearest you. For technical information, contact our
factory engineering staff at 314-647-6200 (1-800-827-2526 for power
workholding technical information). TRADEMARKS:
Numerous trademarks appear throughout this catalog. Delrin®

and Zytel® are registered trademarks of E.I. du Pont de Nemours

SPECIALS: & Co. HAAS® is a registered trademark of Haas Automation Inc.

Carr Lane Manufacturing will gladly make any special tooling Heavy Duty® Hoist Ring is a registered trademark of ADB. Invar36®
components or company tooling standards to your specifications. is a registered trademark of Carpenter Technology Corporation. All
Please send a print or sketch with your request. Our wide range other trademarks contained herein are those of Carr Lane Mfg. Co.
of manufacturing capabilities allows us to quickly produce special and its affiliates.
items for you at economical prices.

ENGINEERING CHANGES:
DIMENSIONS AND TOLERANCES: All Carr Lane Manufacturing products are continually subject
to possible design improvements. We include any engineering
All drawings in this catalog are shown in Third-Angle Projection:
changes as soon as possible in our catalogs, tracing templates, CAD
tooling libraries, and other literature. However, due to inevitable
time lags, dimensions and specifications are subject to change
without notice.

GUARANTEE OF QUALITY:
Carr Lane Manufacturing warrants that the products described
herein will be free from defects in material and workmanship. If
In general, the following maximum tolerances apply to dimensions
you find any failure to conform to this warranty within 90 days
in this catalog, unless otherwise specified:
from date of receipt of the product, and give us immediate
.xxx ±.005
notification thereof, we will replace the defective product or make
.xx ±.020
suitable repairs. If we are unable to correct such nonconformity by
.x ±.050
replacing the product or making suitable repairs, whether due to
Fractions ± 1/32
the nature of such nonconformity, your use of the product, or for
Castings, forgings, molded plastics, and assemblies ± 1/8
any other reason, we will refund the purchase price upon receipt
of the nonconforming product f.o.b. our plant. No product should
be returned to us without a return-authorization number. In no
FINISH SPECIFICATIONS:
event shall we be liable either directly or by way of contribution or
The finishes shown in this catalog are applied according to the
indemnity, for direct, special, incidental or consequential damages
following specifications:
such as, but not limited to, property damage, loss of profit, or
Black Oxide—MIL-C-13924C
damages based on loss of use of the product, whether the claim
Zinc Plate Yellow Chromate
for any such damages be based on warranty, express or implied,
Zinc Plate Clear Chromate
contract, tort, or otherwise. This warranty does not apply to
Cadmium Plate—QQ-P-416, Class 3, Type 1
products that are misapplied, altered, or abused. The foregoing is
Black Anodize—MIL-A-8625, Type II, Class 2
our sole warranty with respect to the product. We make no other
Other finishes are available as specials.
warranties, express or implied, including implied warranties of
merchantability and fitness for a particular purpose.
SAFETY PRECAUTIONS:
Machine tools pose many potential hazards. Observe all appropriate
safety precautions, including those specifically listed in this catalog.
