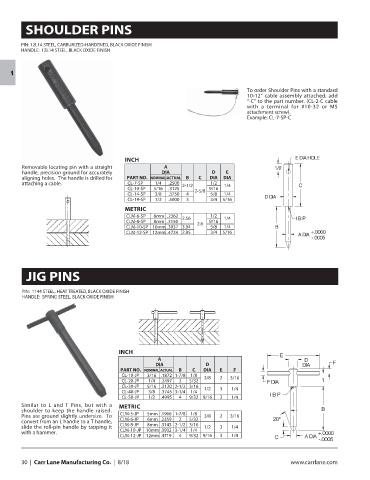

SHOULDER PINS

PIN: 12L14 STEEL, CARBURIZED-HARDENED, BLACK OXIDE FINISH
HANDLE: 12L14 STEEL, BLACK OXIDE FINISH

1
To order Shoulder Pins with a standard
10-12” cable assembly attached, add
“-C” to the part number. (CL-2-C cable
with a terminal for #10-32 or M5
attachment screw).
Example: CL-7-SP-C

INCH
Removable locating pin with a straight A A
DIA
handle, precision ground for accurately DIA D D E E
DIAIA
D
PART NO. NOMINALO. NOMINALL
aligning holes. The handle is drilled for PART N A ACTUALCTUAL B B C C D DIAIA
attaching a cable. CL-7-SP 1/4 .2500 2-1/2 1/2 1/4
CL-10-SP 5/16 .3125 2-5/8 9/16
CL-14-SP 3/8 .3750 4 5/8 1/4
CL-19-SP 1/2 .5000 3 3/4 5/16
METRIC
CLM-6-SP 6mm .2362 2.56 1/2 1/4
CLM-8-SP 8mm .3150 2.6 9/16
CLM-10-SP 10mm .3937 3.94 5/8 1/4
CLM-12-SP 12mm .4724 2.95 3/4 5/16

JIG PINS

PIN: 1144 STEEL, HEAT TREATED, BLACK OXIDE FINISH
HANDLE: SPRING STEEL, BLACK OXIDE FINISH

INCH
A A
D
DIAIA D D
DIA
PART NO. NOPART NO. NOMINAL ACTUALMINAL ACTUAL B B C C DIA E E F F
CL-10-JP 3/16 .1872 1-7/8 1/8 3/8 2 3/16
CL-20-JP 1/4 .2497 2 5/32
CL-30-JP 5/16 .3120 2-1/2 3/16 1/2 3 1/4
CL-40-JP 3/8 .3745 3-1/4 1/4
CL-50-JP 1/2 .4995 4 9/32 9/16 3 1/4
Similar to L and T Pins, but with a METRIC
shoulder to keep the handle raised.
Pins are ground slightly undersize. To CLM-5-JP 5mm .1966 1-7/8 1/8 3/8 2 3/16
convert from an L handle to a T handle, CLM-6-JP 6mm .2359 2 5/32
slide the roll-pin handle by tapping it CLM-8-JP 8mm .3145 2-1/2 3/16 1/2 3 1/4
with a hammer. CLM-10-JP 10mm .3932 3-1/4 1/4
CLM-12-JP 12mm .4719 4 9/32 9/16 3 1/4
