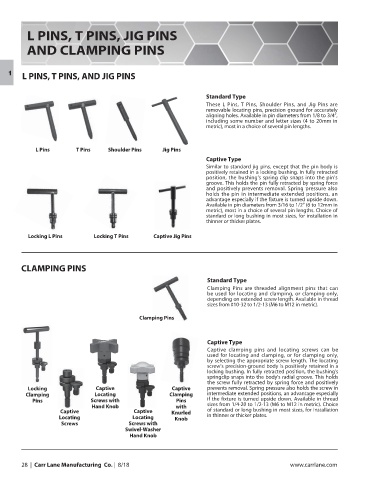

L PINS, T PINS, JIG PINS

AND CLAMPING PINS

L PINS, T PINS, AND JIG PINS
1

Standard Type
These L Pins, T Pins, Shoulder Pins, and Jig Pins are
removable locating pins, precision ground for accurately
aligning holes. Available in pin diameters from 1/8 to 3/4”,
including some number and letter sizes (4 to 20mm in
metric), most in a choice of several pin lengths.

L Pins T Pins Shoulder Pins Jig Pins
Captive Type
Similar to standard jig pins, except that the pin body is
positively retained in a locking bushing. In fully retracted
position, the bushing’s spring clip snaps into the pin’s
groove. This holds the pin fully retracted by spring force
and positively prevents removal. Spring pressure also
holds the pin in intermediate extended positions, an
advantage especially if the fixture is turned upside down.
Available in pin diameters from 3/16 to 1/2” (6 to 12mm in
metric), most in a choice of several pin lengths. Choice of
standard or long bushing in most sizes, for installation in
thinner or thicker plates.

Locking L Pins Locking T Pins Captive Jig Pins

CLAMPING PINS

Standard Type
Clamping Pins are threaded alignment pins that can
be used for locating and clamping, or clamping only,
depending on extended screw length. Available in thread
sizes from #10-32 to 1/2-13 (M6 to M12 in metric).

Clamping Pins

Captive Type
Captive clamping pins and locating screws can be
used for locating and clamping, or for clamping only,
by selecting the appropriate screw length. The locating
screw’s precision-ground body is positively retained in a
locking bushing. In fully retracted position, the bushing’s
springclip snaps into the body’s radial groove. This holds
the screw fully retracted by spring force and positively
Locking Captive Captive prevents removal. Spring pressure also holds the screw in
Clamping Locating Clamping intermediate extended positions, an advantage especially
Pins Screws with Pins if the fixture is turned upside down. Available in thread
Hand Knob with sizes from 1/4-20 to 1/2-13 (M6 to M12 in metric). Choice
Captive Captive Knurled of standard or long bushing in most sizes, for installation
Locating Locating Knob in thinner or thicker plates.
Screws Screws with
Swivel-Washer
Hand Knob
