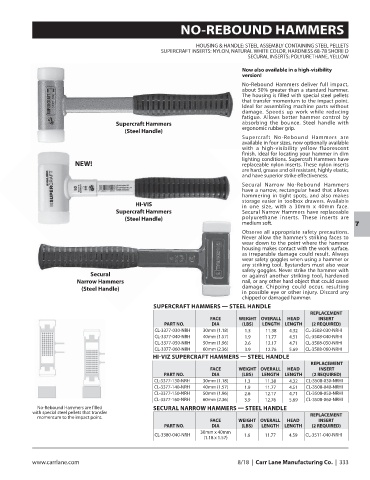

Page 335 - CarrLaneCatalog_2019ed-c.pdf

NO-REBOUND HAMMERS

HOUSING & HANDLE: STEEL ASSEMBLY CONTAINING STEEL PELLETS
SUPERCRAFT INSERTS: NYLON, NATURAL WHITE COLOR, HARDNESS 68-78 SHORE D
SECURAL INSERTS: POLYURETHANE, YELLOW

Now also available in a high-visibility
version!
No-Rebound Hammers deliver full impact,
about 50% greater than a standard hammer.
The housing is filled with special steel pellets
that transfer momentum to the impact point.
Ideal for assembling machine parts without
damage. Speeds up work while reducing
fatigue. Allows better hammer control by
Supercraft Hammers absorbing the bounce. Steel handle with
ergonomic rubber grip.
(Steel Handle)
Supercraft No-Rebound Hammers are
available in four sizes, now optionally available
with a high-visibility yellow fluorescent
finish, ideal for locating your hammer in dim
lighting conditions. Supercraft Hammers have
NEW! replaceable nylon inserts. These nylon inserts
are hard, grease and oil resistant, highly elastic,
and have superior strike effectiveness.
Secural Narrow No-Rebound Hammers
have a narrow, rectangular head that allows
hammering in tight spots, and also makes
storage easier in toolbox drawers. Available
HI-VIS in one size, with a 30mm x 40mm face.
Supercraft Hammers Secural Narrow Hammers have replaceable
(Steel Handle) polyurethane inserts. These inserts are
medium soft.
7
Observe all appropriate safety precautions.
Never allow the hammer’s striking faces to
wear down to the point where the hammer
housing makes contact with the work surface,
as irreparable damage could result. Always
wear safety goggles when using a hammer or
any striking tool. Bystanders must also wear
safety goggles. Never strike the hammer with
Secural or against another striking tool, hardened
Narrow Hammers nail, or any other hard object that could cause
(Steel Handle) damage. Chipping could occur, resulting
in possible eye or other injury. Discard any
chipped or damaged hammer.
SUPERCRAFT HAMMERS — STEEL HANDLE
REPLACEMENT
FACE WEIGHT OVERALL HEAD INSERT
PART NO. DIA (LBS) LENGTH LENGTH (2 REQUIRED)
CL-3377-030-NRH 30mm (1.18) 1.3 11.38 4.32 CL-3508-030-NRHI
CL-3377-040-NRH 40mm (1.57) 1.9 11.77 4.51 CL-3508-040-NRHI
CL-3377-050-NRH 50mm (1.96) 2.6 12.17 4.71 CL-3508-050-NRHI
CL-3377-060-NRH 60mm (2.36) 3.9 12.76 5.69 CL-3508-060-NRHI
HI-VIZ SUPERCRAFT HAMMERS — STEEL HANDLE
REPLACEMENT
FACE WEIGHT OVERALL HEAD INSERT
PART NO. DIA (LBS) LENGTH LENGTH (2 REQUIRED)
CL-3377-130-NRH 30mm (1.18) 1.3 11.38 4.32 CL-3508-030-NRHI
CL-3377-140-NRH 40mm (1.57) 1.9 11.77 4.51 CL-3508-040-NRHI
CL-3377-150-NRH 50mm (1.96) 2.6 12.17 4.71 CL-3508-050-NRHI
CL-3377-160-NRH 60mm (2.36) 3.9 12.76 5.69 CL-3508-060-NRHI
No-Rebound Hammers are filled SECURAL NARROW HAMMERS — STEEL HANDLE
with special steel pellets that transfer REPLACEMENT
momentum to the impact point.
FACE WEIGHT OVERALL HEAD INSERT
PART NO. DIA (LBS) LENGTH LENGTH (2 REQUIRED)
30mm x 40mm
CL-3380-040-NRH 1.6 11.77 4.59 CL-3511-040-NRHI
(1.18 x 1.57)

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 333
