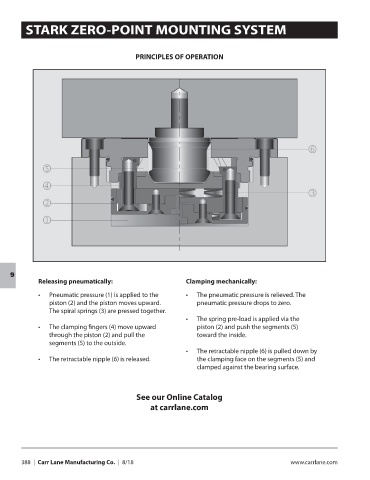

STARK ZERO-POINT MOUNTING SYSTEM
PRINCIPLES OF OPERATION
9
Releasing pneumatically: Clamping mechanically:
• Pneumatic pressure (1) is applied to the • The pneumatic pressure is relieved. The
piston (2) and the piston moves upward. pneumatic pressure drops to zero.
The spiral springs (3) are pressed together.
• The spring pre-load is applied via the
• The clamping fingers (4) move upward piston (2) and push the segments (5)
through the piston (2) and pull the toward the inside.
segments (5) to the outside.
• The retractable nipple (6) is pulled down by
• The retractable nipple (6) is released. the clamping face on the segments (5) and
clamped against the bearing surface.
