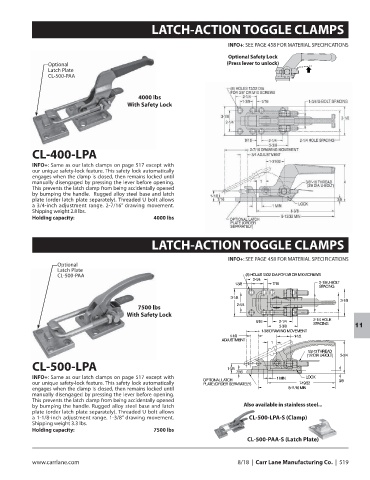

LATCH-ACTION TOGGLE CLAMPS
INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS
Optional Safety Lock
Optional (Press lever to unlock)
Latch Plate
CL-500-PAA
4000 lbs
With Safety Lock
CL-400-LPA
INFO+: Same as our latch clamps on page 517 except with
our unique safety-lock feature. This safety lock automatically
engages when the clamp is closed, then remains locked until
manually disengaged by pressing the lever before opening.
This prevents the latch clamp from being accidentally opened
by bumping the handle. Rugged alloy steel base and latch
plate (order latch plate separately). Threaded U bolt allows
a 3/4-inch adjustment range. 2-7/16” drawing movement.
Shipping weight 2.8 lbs.
Holding capacity: 4000 lbs
LATCH-ACTION TOGGLE CLAMPS
INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS
Optional
Latch Plate
CL-500-PAA (8) HOLES 13/32 DIA FOR 3/8 OR M10 SCREWS
2-1/4
1-3/8 7/16 2-1/8 U-BOLT
SPACING
3-1/8
3-1/8
2-1/4
7500 lbs
With Safety Lock
2-1/4 HOLE
9/16 2-1/4 SPACING
3-3/8 11
1-3/8 DRAWING MOVEMENT
1-1/8 1-1/2
ADJUSTMENT
1
1/2-13 THREAD
(1/2 DIA U-BOLT) 3-3/4
CL-500-LPA 1-1/8
7/16
INFO+: Same as our latch clamps on page 517 except with OPTIONAL LATCH 1 MIN LOCK
our unique safety-lock feature. This safety lock automatically PLATE (ORDER SEPARATELY) 7-19/32 3/8
engages when the clamp is closed, then remains locked until 8-11/16 MIN
manually disengaged by pressing the lever before opening.
This prevents the latch clamp from being accidentally opened
by bumping the handle. Rugged alloy steel base and latch Also available in stainless steel...
plate (order latch plate separately). Threaded U bolt allows
a 1-1/8-inch adjustment range. 1-3/8” drawing movement. CL-500-LPA-S (Clamp)
Ship ping weight 3.3 lbs.
Holding capacity: 7500 lbs
CL-500-PAA-S (Latch Plate)
