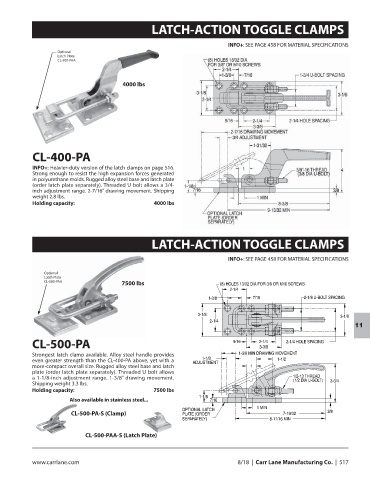

LATCH-ACTION TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS
Optional
Latch Plate
CL-500-PAA

4000 lbs

CL-400-PA

INFO+: Heavier-duty version of the latch clamps on page 516.
Strong enough to resist the high expansion forces generated
in polyurethane molds. Rugged alloy steel base and latch plate
(order latch plate separately). Threaded U bolt allows a 3/4-
inch adjustment range. 2-7/16” drawing movement. Shipping
weight 2.8 lbs.
Holding capacity: 4000 lbs

LATCH-ACTION TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

Optional
Latch Plate
CL-500-PAA
7500 lbs (8) HOLES 13/32 DIA FOR 3/8 OR M10 SCREWS
2-1/4
1-3/8 7/16 2-1/8 U-BOLT SPACING

3-1/8
3-1/8
2-1/4
11

CL-500-PA 9/16 2-1/4 2-1/4 HOLE SPACING
3-3/8
Strongest latch clamp available. Alloy steel handle provides 1-3/8 MIN DRAWING MOVEMENT
even greater strength than the CL-400-PA above, yet with a 1-1/8 1-1/2
ADJUSTMENT
more-compact overall size. Rugged alloy steel base and latch 1
plate (order latch plate separately). Threaded U bolt allows
a 1-1/8-inch adjustment range. 1-3/8” drawing movement. 1/2-13 THREAD 3-3/4
(1/2 DIA U-BOLT)
Ship ping weight 3.3 lbs.
Holding capacity: 7500 lbs
1-1/8
Also available in stainless steel... 7/16
1 MIN
OPTIONAL LATCH 3/8
CL-500-PA-S (Clamp) PLATE (ORDER 7-19/32
SEPARATELY) 8-11/16 MIN

CL-500-PAA-S (Latch Plate)
