P. 528

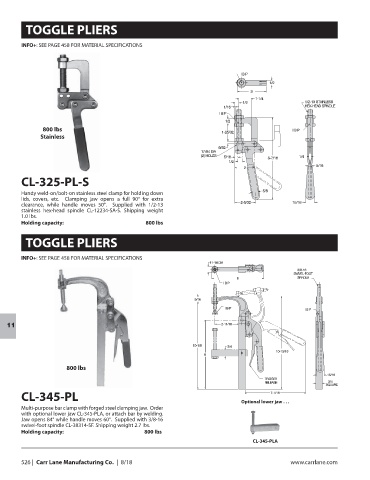

TOGGLE PLIERS
INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS
800 lbs
Stainless
CL-325-PL-S
Handy weld-on/bolt-on stainless steel clamp for holding down
lids, covers, etc. Clamping jaw opens a full 90° for extra
clearance, while handle moves 50°. Supplied with 1/2-13
stainless hex-head spindle CL-12234-SA-S. Shipping weight
1.0 lbs.
Holding capacity: 800 lbs
TOGGLE PLIERS
INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS
11
800 lbs
CL-345-PL
Optional lower jaw . . .
Multi-purpose bar clamp with forged steel clamping jaw. Order
with optional lower jaw CL-345-PLA, or attach bar by welding.
Jaw opens 84° while handle moves 60°. Supplied with 3/8-16
swivel-foot spindle CL-38314-SF. Shipping weight 2.7 lbs.
Holding capacity: 800 lbs
CL-345-PLA
526 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
