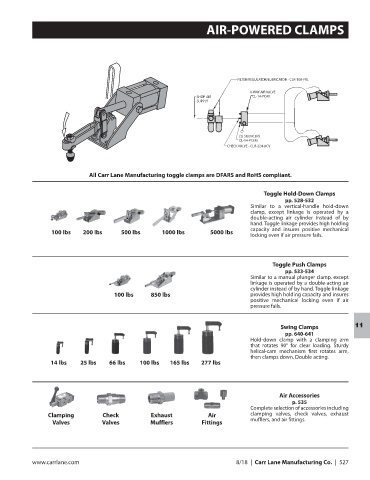

AIR-POWERED CLAMPS

FILTER/REGULATOR/LUBRICATOR - CLR-100-FRL

4-WAY AIR VALVE
SHOP AIR CL-14-PCAV
SUPPLY

(2) SILENCERS
CL-14-PCEM
CHECK VALVE - CLR-224-ACV

All Carr Lane Manufacturing toggle clamps are DFARS and RoHS compliant.

Toggle Hold-Down Clamps
pp. 528-532
Similar to a vertical-handle hold-down
clamp, except linkage is operated by a
double-acting air cylinder instead of by
hand. Toggle linkage provides high holding
capacity and insures positive mechanical
100 lbs 200 lbs 500 lbs 1000 lbs 5000 lbs
locking even if air pressure fails.

Toggle Push Clamps
pp. 533-534
Similar to a manual plunger clamp, except
linkage is operated by a double-acting air
cylinder instead of by hand. Toggle linkage
100 lbs 850 lbs provides high holding capacity and insures
positive mechanical locking even if air
pressure fails.

Swing Clamps 11
pp. 640-641
Hold-down clamp with a clamping arm
that rotates 90° for clear loading. Sturdy
helical-cam mechanism first rotates arm,
then clamps down. Double acting.
14 lbs 25 lbs 66 lbs 100 lbs 165 lbs 277 lbs

Air Accessories
p. 535
Complete selection of accessories including
Clamping Check Exhaust Air clamping valves, check valves, exhaust
mufflers, and air fittings.
Valves Valves Mufflers Fittings
