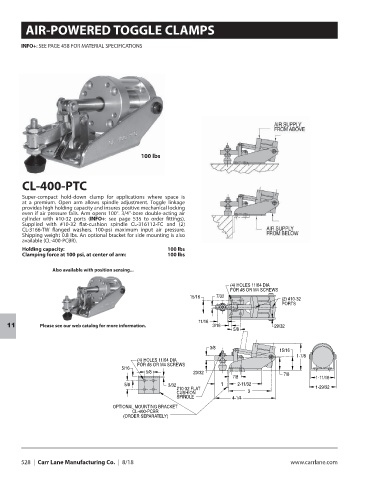

AIR-POWERED TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

100 lbs

CL-400-PTC

Super-compact hold-down clamp for applications where space is
at a premium. Open arm allows spindle adjustment. Toggle linkage
provides high holding capacity and insures positive mechanical locking
even if air pressure fails. Arm opens 100°. 3/4”-bore double-acting air
cylinder with #10-32 ports (INFO+: see page 535 to order fittings).
Supplied with #10-32 flat-cushion spindle CL-316112-FC and (2)
CL-3166-TW flanged washers. 100-psi maximum input air pressure.
Shipping weight 0.8 lbs. An optional bracket for side mounting is also
available (CL-400-PCBR).
Holding capacity: 100 lbs
Clamping force at 100 psi, at center of arm: 100 lbs

Also available with position sensing...

(4) HOLES 11/64 DIA
FOR #8 OR M4 SCREWS
15/16 7/32
(2) #10-32
PORTS

11/16
Please see our web catalog for more information. 3/16 29/32
11
5/8
3/8
15/16
1-7/8
(4) HOLES 11/64 DIA
FOR #8 OR M4 SCREWS
5/16
5/8 23/32 7/8
7/8 1-11/16
5/8 3/32 1 1 2-11/32
#10-32 FLAT 1-29/32
CUSHION 3
SPINDLE 4-1/4
OPTIONAL MOUNTING BRACKET
CL-400-PCBR
(ORDER SEPARATELY)
