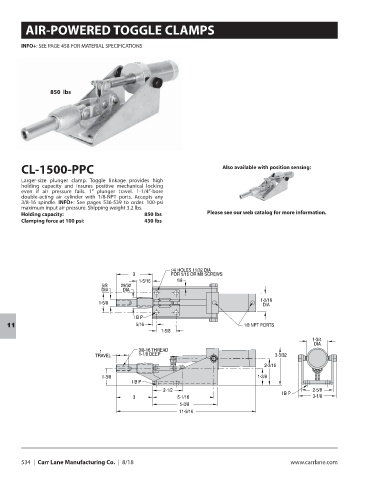

Page 536 - CarrLaneCatalog_2019ed-c.pdf

AIR-POWERED TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

850 lbs

CL-1500-PPC Also available with position sensing:

Larger-size plunger clamp. Toggle linkage provides high
holding capacity and insures positive mechanical locking
even if air pressure fails. 1” plunger travel. 1-1/4”-bore
double-acting air cylinder with 1/8-NPT ports. Accepts any
3/8-16 spindle. INFO+: See pages 536-539 to order. 100-psi
maximum input air pressure. Shipping weight 3.2 lbs.
Holding capacity: 850 lbs Please see our web catalog for more information.
Clamping force at 100 psi: 430 lbs

(4) HOLES 11/32 DIA
3 FOR 5/16 OR M8 SCREWS
1-5/16 1/8
5/8 29/32
DIA DIA
1-5/16
1-5/8
DIA
I B P
5/16 1/8 NPT PORTS
11
1-5/8
1-3/4
DIA
1 3/8-16 THREAD
TRAVEL 1-1/8 DEEP 3-3/32
2-3/16
1-3/8 1-3/8
I B P
2-1/2 2-5/8
I B P
3 5-1/16 3-1/8
5-3/8
11-9/16
