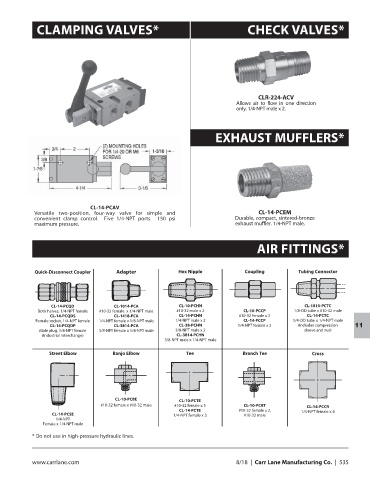

Page 537 - CarrLaneCatalog_2019ed-c.pdf

CLAMPING VALVES* CHECK VALVES*

CLR-224-ACV
Allows air to flow in one direction
only. 1/4-NPT male x 2.

EXHAUST MUFFLERS*

CL-14-PCAV
Versatile two-position, four-way valve for simple and CL-14-PCEM
convenient clamp control. Five 1/4-NPT ports. 150 psi Durable, compact, sintered-bronze
maximum pressure. exhaust muffler. 1/4-NPT male.

AIR FITTINGS*

Quick-Disconnect Coupler Adapter Hex Nipple Coupling Tubing Connector

CL-14-PCQD CL-1014-PCA CL-10-PCHN CL-1810-PCTC
Both halves, 1/4-NPT female #10-32 female x 1/4-NPT male #10-32 male x 2 CL-10-PCCP 1/8-OD tube x #10-32 male
CL-14-PCQDS CL-1418-PCA CL-14-PCHN #10-32 female x 2 CL-14-PCTC
Female socket, 1/4-NPT female 1/4-NPT female x 1/8-NPT male 1/4-NPT male x 2 CL-14-PCCP 1/4-OD tube x 1/4-NPT male
CL-14-PCQDP CL-3814-PCA CL-38-PCHN 1/4-NPT female x 2 (Includes compression
11
Male plug, 1/4-NPT female 3/8-NPT female x 1/4-NPT male 3/8-NPT male x 2 sleeve and nut)
(Industrial Interchange) CL-3814-PCHN
3/8-NPT male x 1/4-NPT male
Street Elbow Banjo Elbow Tee Branch Tee Cross

CL-10-PCBE CL-10-PCTE
#10-32 female x #10-32 male #10-32 female x 3 CL-10-PCBT CL-14-PCCR
CL-14-PCTE #10-32 female x 2, 1/4-NPT female x 4
CL-14-PCSE 1/4-NPT female x 3 #10-32 male
1/4-NPT
Female x 1/4-NPT male
* Do not use in high-pressure hydraulic lines.
