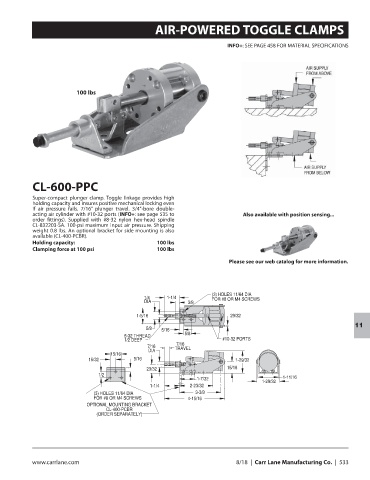

AIR-POWERED TOGGLE CLAMPS

INFO+: SEE PAGE 458 FOR MATERIAL SPECIFICATIONS

100 lbs

CL-600-PPC
Super-compact plunger clamp. Toggle linkage provides high
holding capacity and insures positive mechanical locking even
if air pressure fails. 7/16” plunger travel. 3/4”-bore double-
acting air cylinder with #10-32 ports (INFO+: see page 535 to Also available with position sensing...
order fittings). Supplied with #8-32 nylon hex-head spindle
CL-832203-SA. 100-psi maximum input air pressure. Shipping
weight 0.8 lbs. An optional bracket for side mounting is also
available (CL-400-PCBR).
Holding capacity: 100 lbs
Clamping force at 100 psi 100 lbs
Please see our web catalog for more information.

(3) HOLES 11/64 DIA
1/4 1-1/4 FOR #8 OR M4 SCREWS
DIA 3/8

1-5/16 29/32
5/8 5/16 11
8-32 THREAD 5/8
1/2 DEEP #10-32 PORTS
7/16
7/16 TRAVEL
DIA
15/16
15/32 5/16 1-29/32
23/32 15/16
1/2
1-7/32 1-11/16
1-29/32
1-1/4 2-23/32
(3) HOLES 11/64 DIA 3-3/8
FOR #8 OR M4 SCREWS 4-15/16
OPTIONAL MOUNTING BRACKET
CL-400-PCBR
(ORDER SEPARATELY)
