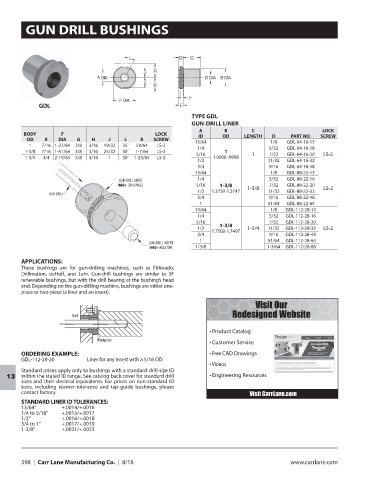

GUN DRILL BUSHINGS

GDL

TYPE GDL
GUN-DRILL LINER
A B C LOCK
BODY F LOCK ID OD LENGTH D PART NO. SCREW
OD E DIA G H J L R SCREW
13/64 1/8 GDL-64-16-13
1 7/16 1-27/64 3/8 3/16 19/32 35˚ 59/64 LS-2
1/4 5/32 GDL-64-16-16
1-3/8 7/16 1-51/64 3/8 3/16 25/32 30˚ 1-7/64 LS-2 5/16 1 1 7/32 GDL-64-16-20 LS-2
1-3/4 3/4 2-19/64 3/8 3/16 1 30˚ 1-25/64 LS-2 1.0000-.9998
1/2 11/32 GDL-64-16-32
3/4 9/16 GDL-64-16-48
13/64 1/8 GDL-88-22-13
GUN-DRILL LINER 1/4 5/32 GDL-88-22-16
INFO+ (THIS PAGE) 5/16 1-3/8 7/32 GDL-88-22-20
1/2 1.3750-1.3747 1-3/8 11/32 GDL-88-22-32 LS-2
GUN DRILL
3/4 9/16 GDL-88-22-48
1 51/64 GDL-88-22-64
13/64 1/8 GDL-112-28-13
1/4 5/32 GDL-112-28-16
5/16 7/32 GDL-112-28-20
1-3/4
1/2 1-3/4 11/32 GDL-112-28-32 LS-2
1.7500-1.7497
3/4 9/16 GDL-112-28-48
1 51/64 GDL-112-28-64
GUN-DRILL INSERT
INFO+ PAGE 599 1-3/8 1-3/64 GDL-112-28-88
APPLICATIONS:
These bushings are for gun-drilling machines, such as Eldorado,
Drillmation, deHoff, and Lahr. Gun-drill bushings are similar to SF
renewable bushings, but with the drill bearing at the bushing’s head
end. Depending on the gun-drilling machine, bushings are either one-
piece or two-piece (a liner and an insert).
Visit Our
Redesigned Website
Drill

• Product Catalog
Workpiece
• Customer Service
ORDERING EXAMPLE: • Free CAD Drawings
GDL-112-28-20 Liner for any insert with a 5/16 OD
• Videos
Standard prices apply only to bushings with a standard-drill-size ID
within the stated ID range. See catalog back cover for standard drill • Engineering Resources
13
sizes and their decimal equivalents. For prices on non-standard ID
sizes, including reamer-tolerance and tap-guide bushings, please
contact factory. Visit CarrLane.com
STANDARD LINER ID TOLERANCES:
13/64” +.0014/+.0016
1/4 to 5/16” +.0015/+.0017
1/2” +.0016/+.0018
3/4 to 1” +.0017/+.0019
1-3/8” +.0021/+.0023
