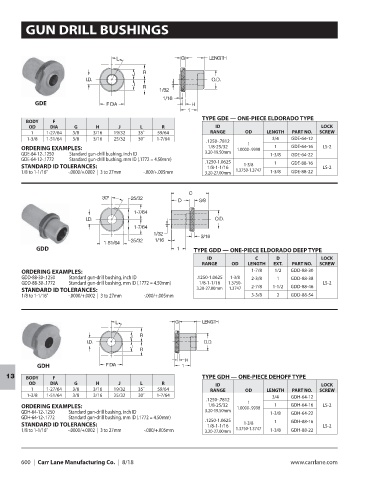

Page 602 - CarrLaneCatalog_2019ed-c.pdf

GUN DRILL BUSHINGS

GDE

TYPE GDE — ONE-PIECE ELDORADO TYPE
BODY F
OD DIA G H J L R ID LOCK
1 1-27/64 3/8 3/16 19/32 35˚ 59/64 RANGE OD LENGTH PART NO. SCREW
1-3/8 1-51/64 3/8 3/16 25/32 30˚ 1-7/64 3/4 GDE-64-12
.1250-.7812 1
ORDERING EXAMPLES: 1/8-25/32 1.0000-.9998 1 GDE-64-16 LS-2
GDE-64-12-.1250 Standard gun-drill bushing, inch ID 3.20-19.50mm 1-3/8 GDE-64-22
GDE-64-12-.1772 Standard gun-drill bushing, mm ID (.1772 = 4.50mm)
.1250-1.0625 1 GDE-88-16
STANDARD ID TOLERANCES: 1/8-1-1/16 1-3/8 LS-2
1/8 to 1-1/16” -.0000/+.0002 | 3 to 27mm -.000/+.005mm 3.20-27.00mm 1.3750-1.3747 1-3/8 GDE-88-22

GDD TYPE GDD — ONE-PIECE ELDORADO DEEP TYPE
ID C D LOCK
RANGE OD LENGTH EXT. PART NO. SCREW
ORDERING EXAMPLES: 1-7/8 1/2 GDD-88-30
GDD-88-30-.1250 Standard gun-drill bushing, inch ID .1250-1.0625 1-3/8 2-3/8 1 GDD-88-38
GDD-88-30-.1772 Standard gun-drill bushing, mm ID (.1772 = 4.50mm) 1/8-1-1/16 1.3750- 2-7/8 1-1/2 GDD-88-46 LS-2
STANDARD ID TOLERANCES: 3.20-27.00mm 1.3747
1/8 to 1-1/16” -.0000/+.0002 | 3 to 27mm -.000/+.005mm 3-3/8 2 GDD-88-54

GDH
BODY F TYPE GDH — ONE-PIECE DEHOFF TYPE
13
OD DIA G H J L R ID LOCK
1 1-27/64 3/8 3/16 19/32 35˚ 59/64 RANGE OD LENGTH PART NO. SCREW
1-3/8 1-51/64 3/8 3/16 25/32 30˚ 1-7/64 3/4 GDH-64-12
.1250-.7812 1
ORDERING EXAMPLES: 1/8-25/32 1.0000-.9998 1 GDH-64-16 LS-2
GDH-64-12-.1250 Standard gun-drill bushing, inch ID 3.20-19.50mm 1-3/8 GDH-64-22
GDH-64-12-.1772 Standard gun-drill bushing, mm ID (.1772 = 4.50mm)
.1250-1.0625 1 GDH-88-16
STANDARD ID TOLERANCES: 1/8-1-1/16 1-3/8 LS-2
1/8 to 1-1/16” -.0000/+.0002 | 3 to 27mm -.000/+.005mm 3.20-27.00mm 1.3750-1.3747 1-3/8 GDH-88-22

600 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
