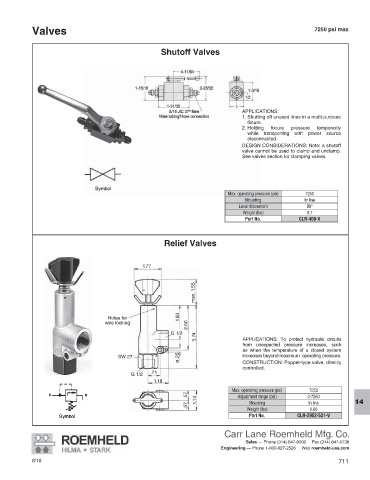

Valves 7250 psi max

Shutoff Valves

APPLICATIONS:
1. Shutting off unused lines in a multi-purpose
fixture.
2. Holding fixture pressure temporarily
while transporting with power source
disconnected.
DESIGN CONSIDERATIONS: Note: a shutoff
valve cannot be used to clamp and unclamp.
See valves section for clamping valves.

Max. operating pressure (psi) 7250
Mounting In line
Lever Movement 90°
Weight (lbs) 0.7
Part No. CLR-400-V

Relief Valves

1.77

max. 1 .55

Holes for 1.93
2.60
wire locking
G 1/2
3.74 APPLICATIONS: To protect hydraulic circuits
from unexpected pressure increases, such
as when the temperature of a closed system
ø.25 CONSTRUCTION: Poppet-type valve, directly
SW 27 increases beyond maximum operating pressure.
controlled.
G 1/2 .71
1.18
Max. operating pressure (psi) 7250
.57 1.14 Adjustment range (psi) 0-7250
.57 Mounting In line 14
Weight (lbs) 0.66
Part No. CLR-2952-521-V
