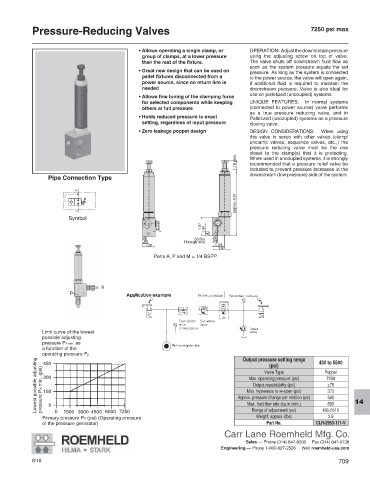

Pressure-Reducing Valves 7250 psi max

• Allows operating a single clamp, or OPERATION: Adjust the downstream pressure
group of clamps, at a lower pressure using the adjusting screw on top of valve.
than the rest of the fixture. The valve shuts off downstream fluid flow as
soon as the system pressure equals the set
• Great new design that can be used on pressure. As long as the system is connected
pallet fixtures disconnected from a to the power source, the valve will open again,
power source, since no return line is if additional fluid is required to maintain the
needed downstream pressure. Valve is also ideal for
use on palletized (uncoupled) systems.
• Allows fine tuning of the clamping force
for selected components while keeping UNIQUE FEATURES: In normal systems
others at full pressure (connected to power source) valve performs
as a true pressure reducing valve, and in
• Holds reduced pressure to exact Palletized (uncoupled) systems as a pressure
setting, regardless of input pressure closing valve.
• Zero leakage poppet design DESIGN CONSIDERATIONS: When using
this valve in series with other valves (clamp/
unclamp valves, sequence valves, etc.,) the
pressure reducing valve must be the one
closet to the clamp(s) that it is protecting.
1.18 max. When used in uncoupled systems, it is strongly
recommended that a pressure relief valve be
included to prevent pressure in creases in the
downstream (low pressure) side of the system.
Pipe Connection Type

approx. 6.61

Symbol A
1.97
.41 1.34
P .47
.49 .33 Dia .47
.69 Through hole .59
1.38 1.34
1.97
Ports A, P and M = 1/4 BSPP

A
P

Limit curve of the lowest
possible adjusting
pressure PA min. as
a function of the
operating pressure Pp Output pressure setting range 450 to 5500
Lowest possible adjusting pressure PA min. (psi) 300 Approx. pressure change per rotation (psi) Poppet
450
(psi)
Valve Type
7250
Max. operating pressure (psi)
Output repeatability (psi)
±75
150
375
Max. hysteresis to re-open (psi)
580
600
0
Range of adjustment (psi)
0
1500 3000 4500 6000 7250
2.9
Weight, approx. (lbs)
Primary pressure PP (psi) (Operating pressure Max. fluid flow rate (cu.in./min.) 435-5510 14
of the pressure generator) Part No. CLR-2953-111-V
