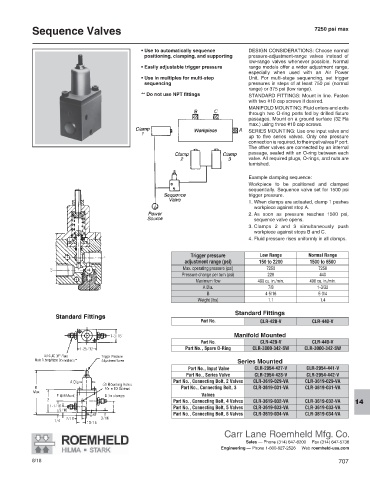

Sequence Valves 7250 psi max

• Use to automatically sequence DESIGN CONSIDERATIONS: Choose normal
positioning, clamping, and supporting pressure-adjustment-range valves instead of
low-range valves whenever possible. Normal
• Easily adjustable trigger pressure range models offer a wider adjustment range,
especially when used with an Air Power
• Use in multiples for multi-step Unit. For multi-stage sequencing, set trigger
sequencing pressures in steps of at least 750 psi (normal
range) or 375 psi (low range).
** Do not use NPT fittings STANDARD FITTINGS: Mount in line. Fasten
with two #10 cap screws if desired.
MANIFOLD MOUNTING: Fluid enters and exits
through two O-ring ports fed by drilled fixture
passages. Mount on a ground surface (32 Ra
max.) using three #10 cap screws.
SERIES MOUNTING: Use one input valve and
up to five series valves. Only one pressure
connection is required, to the input valves P port.
The other valves are connected by an internal
passage, sealed with an O-ring between each
valve. All required plugs, O-rings, and nuts are
furnished.

Example clamping sequence:
Workpiece to be positioned and clamped
sequentially. Sequence valve set for 1500 psi
trigger pressure.
1. When clamps are actuated, clamp 1 pushes
workpiece against stop A.
2. As soon as pressure reaches 1500 psi,
sequence valve opens.
3. Clamps 2 and 3 simultaneously push
workpiece against stops B and C.
4. Fluid pressure rises uniformly in all clamps.

Trigger pressure Low Range Normal Range
adjustment range (psi) 150 to 2200 1500 to 6500
Max. operating pressure (psi) 7250 7250
Pressure change per turn (psi) 220 440
Maximum flow 490 cu. in./min. 490 cu. in./min.
A Dia. 7/8 1-3/32
B 4-5/16 5-3/4
Weight (lbs) 1.1 1.4

Standard Fittings
Part No. CLR-420-V CLR-440-V
Manifold Mounted
Part No. CLR-429-V CLR-449-V
Part No., Spare O-Ring CLR-3000-342-SW CLR-3000-342-SW

Series Mounted
Part No., Input Valve CLR-2954-427-V CLR-2954-441-V
Part No., Series Valve CLR-2954-428-V CLR-2954-442-V
Part No., Connecting Bolt, 2 Valves CLR-3619-029-VA CLR-3619-029-VA
Part No., Connecting Bolt, 3 CLR-3619-031-VA CLR-3619-031-VA
Valves
Part No., Connecting Bolt, 4 Valves CLR-3619-032-VA CLR-3619-032-VA
14
Part No., Connecting Bolt, 5 Valves CLR-3619-033-VA CLR-3619-033-VA
Part No., Connecting Bolt, 6 Valves CLR-3619-034-VA CLR-3619-034-VA
