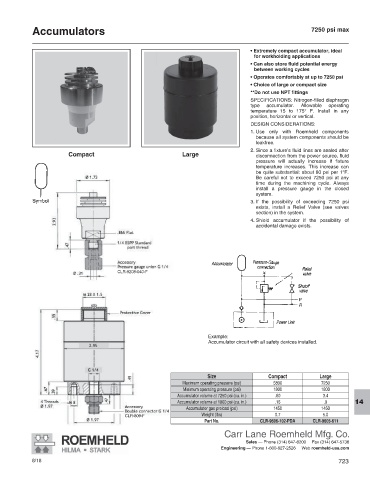

Accumulators 7250 psi max

• Extremely compact accumulator, ideal
for workholding applications
• Can also store fluid potential energy
between working cycles
• Operates comfortably at up to 7250 psi
• Choice of large or compact size
**Do not use NPT fittings
SPECIFICATIONS: Nitrogen-filled diaphragm
type accumulator. Allowable operating
temperature 15 to 175° F. Install in any
position, horizontal or vertical.
DESIGN CONSIDERATIONS:
1. Use only with Roemheld components
because all system components should be
leakfree.
2. Since a fixture’s fluid lines are sealed after
Compact Large disconnection from the power source, fluid
pressure will actually increase if fixture
temperature increases. This increase can
be quite substantial: about 80 psi per 1°F.
Be careful not to exceed 7250 psi at any
time during the machining cycle. Always
install a pressure gauge in the closed
system.
3. If the possibility of exceeding 7250 psi
exists, install a Relief Valve (see valves
section) in the system.
4. Shield accumulator if the possibility of
accidental damage exists.

CLR-9208-040-F

Example:
Accumulator circuit with all safety devices installed.

Size Compact Large
Maximum operating pressure (psi) 5800 7250
Minimum operating pressure (psi) 1800 1800
Accumulator volume at 7250 psi (cu. in.) .60 3.4
Accumulator volume at 1800 psi (cu. in.) .16 .9 14
Accumulator gas preload (psi) 1450 1450
CLR-809-F Weight (lbs) 0.7 5.0
Part No. CLR-9606-102-PDA CLR-9605-611

Carr Lane Roemheld Mfg. Co.
Sales — Phone (314) 647-6200 Fax (314) 647-5736
Engineering — Phone 1-800-827-2526 Web roemheld-usa.com
8/18 723
