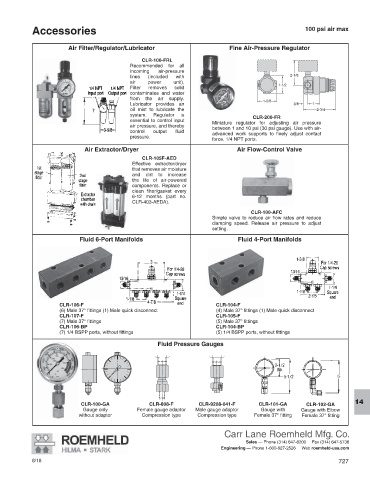

Accessories 100 psi air max

Air Filter/Regulator/Lubricator Fine Air-Pressure Regulator

CLR-100-FRL
Recommended for all
incoming air-pressure
lines (included with 2-1/8
air power unit).
Filter removes solid 1-1/2
contaminates and water
from the air supply. 1-5/8
Lu brica tor provides an 3/8 1
oil mist to lubricate the 2-3/4
system. Regulator is CLR-200-FR
essential to control input Miniature regulator for adjusting air pressure
air pressure, and thereby between 1 and 10 psi (30 psi gauge). Use with air-
control output fluid advanced work supports to finely adjust contact
pressure.
force. 1/4 NPT ports.
Air Extractor/Dryer Air Flow-Control Valve
CLR-105F-AED
Effective extractor/dryer
that removes air moisture
and dirt to increase
the life of air-powered
components. Replace or
clean filter/gasket every
6-12 months (part no.
CLR-403-AEDA).
CLR-100-AFC
Simple valve to reduce air flow rates and reduce
clamping speed. Release air pressure to adjust
setting.
Fluid 6-Port Manifolds Fluid 4-Port Manifolds

CLR-106-F CLR-104-F
(6) Male 37° fittings (1) Male quick disconnect (4) Male 37° fittings (1) Male quick disconnect
CLR-107-F CLR-105-F
(7) Male 37° fittings (5) Male 37° fittings
CLR-106-BP CLR-104-BP
(7) 1/4 BSPP ports, without fittings (5) 1/4 BSPP ports, without fittings
Fluid Pressure Gauges

CLR-100-GA CLR-808-F CLR-9208-041-F CLR-101-GA CLR-102-GA 14
Gauge only Female gauge adaptor Male gauge adaptor Gauge with Gauge with Elbow
without adaptor Compression type Compression type Female 37° fitting Female 37° fitting
