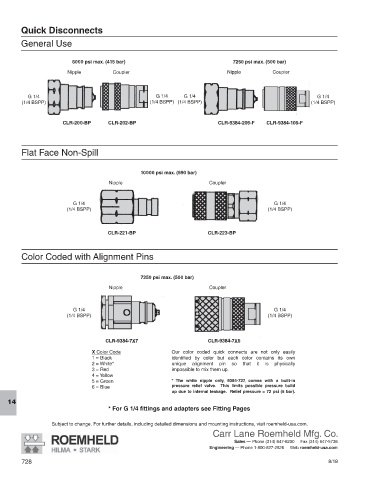

Page 730 - CarrLaneCatalog_2019ed-c.pdf

Quick Disconnects
General Use

6000 psi max. (415 bar) 7250 psi max. (500 bar)
Nipple Coupler Nipple Coupler

G 1/4 G 1/4 G 1/4 G 1/4
(1/4 BSPP) (1/4 BSPP) (1/4 BSPP) (1/4 BSPP)

CLR-200-BP CLR-202-BP CLR-9384-206-F CLR-9384-106-F

Flat Face Non-Spill

10000 psi max. (690 bar)
Nipple Coupler

G 1/4 G 1/4
(1/4 BSPP) (1/4 BSPP)

CLR-221-BP CLR-223-BP

Color Coded with Alignment Pins

7250 psi max. (500 bar)
Nipple Coupler

G 1/4 G 1/4
(1/4 BSPP) (1/4 BSPP)

CLR-9384-7X7 CLR-9384-7X6
X Color Code Our color coded quick connects are not only easily
1 = Black identified by color but each color contains its own
2 = White* unique alignment pin so that it is physically
3 = Red impossible to mix them up.
4 = Yellow
5 = Green * The white nipple only, 9384-727, comes with a built-in
6 = Blue pressure relief valve. This limits possible pressure build
up due to internal leakage. Relief pressure = 72 psi (5 bar).

14
* For G 1/4 fittings and adapters see Fitting Pages

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
