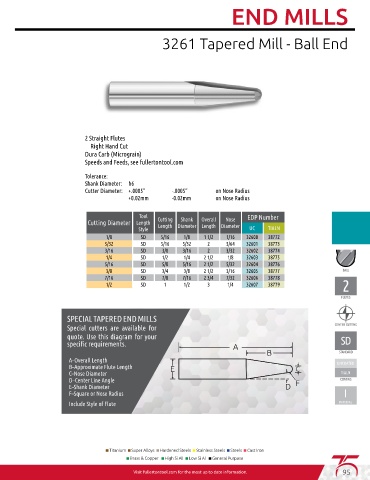

END MILLS

2 Straight Flutes
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0005” -.0005” on Nose Radius
+0.02mm -0.02mm on Nose Radius

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Nose
Length Diameter Length Diameter
Style UC TIALN
1/8 SD 5/16 1/8 1 1/2 1/16 32600 38772
5/32 SD 5/16 5/32 2 5/64 32601 38773
3/16 SD 3/8 3/16 2 3/32 32602 38774
1/4 SD 1/2 1/4 2 1/2 1/8 32603 38775
5/16 SD 5/8 5/16 2 1/2 5/32 32604 38776
3/8 SD 3/4 3/8 2 1/2 3/16 32605 38777
7/16 SD 7/8 7/16 2 3/4 7/32 32606 38778
1/2 SD 1 1/2 3 1/4 32607 38779

SPECIAL TAPERED END MILLS
Special cutters are available for
quote. Use this diagram for your
specific requirements. A
B
A–Overall Length
B–Approximate Flute Length E C UNCOATED
C–Nose Diameter TIALN
D–Center Line Angle F
E–Shank Diameter D
F–Square or Nose Radius I
Include Style of Flute IMPERIAL

■
