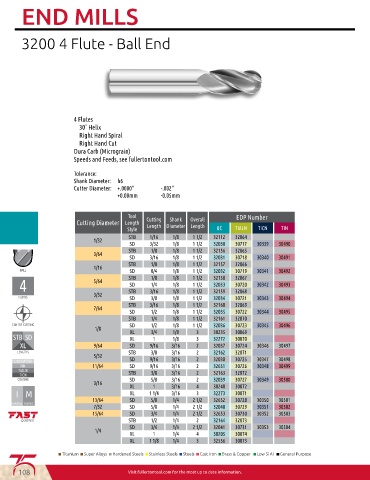

Page 110 - 75th-Online-Anniversary-Catalog

END MILLS

3200 4 Flute - Ball End

4 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Length Diameter Length
Style UC TIALN TICN TIN
STB 1/16 1/8 1 1/2 32112 32864
1/32
SD 3/32 1/8 1 1/2 32030 30717 30339 30490
STB 1/8 1/8 1 1/2 32156 32865
3/64
SD 3/16 1/8 1 1/2 32031 30718 30340 30491
STB 1/8 1/8 1 1/2 32157 32866
1/16
SD 0/4 1/8 1 1/2 32032 30719 30341 30492
STB 1/8 1/8 1 1/2 32158 32867
5/64
SD 1/4 1/8 1 1/2 32033 30720 30342 30493
STB 3/16 1/8 1 1/2 32159 32868
3/32
SD 3/8 1/8 1 1/2 32034 30721 30343 30494
STB 3/16 1/8 1 1/2 32160 32869
7/64
SD 1/2 1/8 1 1/2 32035 30722 30344 30495
STB 1/4 1/8 1 1/2 32161 32870
SD 1/2 1/8 1 1/2 32036 30723 30345 30496
1/8
XL 3/4 1/8 3 30235 30069
XL 1 1/8 3 32272 30070
9/64 SD 9/16 3/16 2 32037 30724 30346 30497
STB 3/8 3/16 2 32162 32871
5/32
UNCOATED SD 9/16 3/16 2 32038 30725 30347 30498
TIN 11/64 SD 9/16 3/16 2 32651 30726 30348 30499
TIALN STB 3/8 3/16 2 32163 32872
TICN
3/16 SD 5/8 3/16 2 32039 30727 30349 30500
XL 1 3/16 4 30240 30072
I M XL 1 1/4 3/16 3 32273 30071
13/64 SD 5/8 1/4 2 1/2 32652 30728 30350 30501
IMPERIAL METRIC
7/32 SD 5/8 1/4 2 1/2 32040 30729 30351 30502
15/64 SD 3/4 1/4 2 1/2 32653 30730 30352 30503
STB 1/2 1/4 2 32164 32873
SD 3/4 1/4 2 1/2 32041 30731 30353 30504
1/4
XL 1 1/4 4 30205 30074
XL 1 1/8 1/4 3 32556 30073

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
