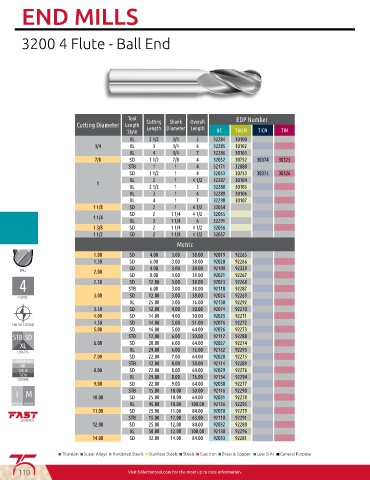

END MILLS

3200 4 Flute - Ball End

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style UC TIALN TICN TIN
XL 2 1/2 3/4 5 32284 30100
3/4 XL 3 3/4 6 32285 30102
XL 4 3/4 7 32286 30103
7/8 SD 1 1/2 7/8 4 32052 30752 30374 30525
STB 1 1 4 32171 32880
SD 1 1/2 1 4 32053 30753 30375 30526
XL 2 1 4 1/2 32287 30104
1
XL 2 1/2 1 5 32288 30105
XL 3 1 6 32289 30106
XL 4 1 7 32290 30107
1 1/8 SD 2 1 4 1/2 32054
SD 2 1 1/4 4 1/2 32055
1 1/4
XL 3 1 1/4 6 32291
1 3/8 SD 2 1 1/4 4 1/2 32056
1 1/2 SD 2 1 1/4 4 1/2 32057
Metric
1.00 SD 4.00 3.00 38.00 92019 92265
1.50 SD 6.00 3.00 38.00 92020 92266
SD 4.00 3.00 38.00 92109 92329
2.00
SD 8.00 3.00 38.00 92021 92267
2.50 SD 12.00 3.00 38.00 92023 92268
STB 6.00 3.00 38.00 92110 92287
3.00 SD 12.00 3.00 38.00 92024 92269
XL 25.00 3.00 76.00 92130 92292
3.50 SD 12.00 4.00 50.00 92074 92270
4.00 SD 14.00 4.00 50.00 92025 92271
4.50 SD 14.00 5.00 51.00 92076 92272
5.00 SD 16.00 5.00 64.00 92026 92273
STB 12.00 6.00 50.00 92112 92288
6.00 SD 20.00 6.00 64.00 92027 92274
XL 29.00 6.00 76.00 92132 92293
7.00 SD 22.00 7.00 64.00 92028 92275
UNCOATED STB 12.00 8.00 50.00 92114 92289
TIN
TIALN 8.00 SD 22.00 8.00 64.00 92029 92276
TICN XL 29.00 8.00 76.00 92134 92294
9.00 SD 22.00 9.00 64.00 92030 92277
I M 10.00 STB 15.00 10.00 50.00 92116 92290
10.00
25.00
SD
92278
92031
64.00
IMPERIAL METRIC XL 45.00 10.00 100.00 92136 92295
11.00 SD 25.00 11.00 84.00 92078 92279
STB 15.00 12.00 63.00 92118 92291
12.00 SD 25.00 12.00 84.00 92032 92280
XL 50.00 12.00 100.00 92138 92296
14.00 SD 32.00 14.00 84.00 92033 92281
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
