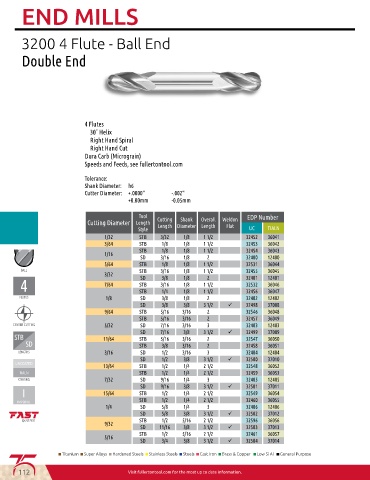

3200 4 Flute - Ball End

Double End

4 Flutes
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Weldon
Flat
Length Diameter Length
Style UC TIALN
1/32 STB 3/32 1/8 1 1/2 32452 36041
3/64 STB 1/8 1/8 1 1/2 32453 36042
STB 1/8 1/8 1 1/2 32454 36043
1/16
SD 3/16 1/8 2 32400 12400
5/64 STB 1/8 1/8 1 1/2 32531 36044
STB 3/16 1/8 1 1/2 32455 36045
3/32
SD 3/8 1/8 2 32401 12401
7/64 STB 3/16 1/8 1 1/2 32532 36046
STB 1/4 1/8 1 1/2 32456 36047
1/8 SD 3/8 1/8 2 32402 12402
SD 3/8 3/8 3 1/2 ü 32498 37008
9/64 STB 5/16 3/16 2 32546 36048
STB 5/16 3/16 2 32457 36049
5/32 SD 7/16 3/16 3 32403 12403
SD 7/16 3/8 3 1/2 ü 32499 37009
11/64 STB 5/16 3/16 2 32547 36050
STB 3/8 3/16 2 32458 36051
3/16 SD 1/2 3/16 3 32404 12404
SD 1/2 3/8 3 1/2 ü 32500 37010
UNCOATED
13/64 STB 1/2 1/4 2 1/2 32548 36052
TIALN STB 1/2 1/4 2 1/2 32459 36053
7/32 SD 9/16 1/4 3 32405 12405
SD 9/16 3/8 3 1/2 ü 32501 37011
I 15/64 STB 1/2 1/4 2 1/2 32549 36054
IMPERIAL STB 1/2 1/4 2 1/2 32460 36055
1/4 SD 5/8 1/4 3 32406 12406
SD 5/8 3/8 3 1/2 ü 32502 37012
STB 1/2 5/16 2 1/2 32596 36056
9/32
SD 11/16 3/8 3 1/2 ü 32503 37013
STB 1/2 5/16 2 1/2 32461 36057
5/16
SD 3/4 3/8 3 1/2 ü 32504 37014
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
