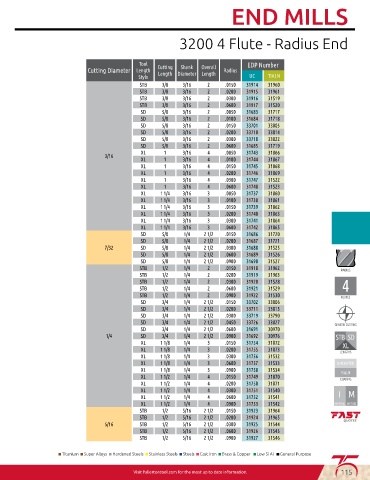

Page 117 - 75th-Online-Anniversary-Catalog

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length Radius
Style UC TIALN
STB 3/8 3/16 2 .0150 31914 31960
STB 3/8 3/16 2 .0200 31915 31961
STB 3/8 3/16 2 .0300 31916 31519
STB 3/8 3/16 2 .0600 31917 31520
SD 5/8 3/16 2 .0050 31683 31717
SD 5/8 3/16 2 .0100 31684 31718
SD 5/8 3/16 2 .0150 33701 33805
SD 5/8 3/16 2 .0200 33710 33814
SD 5/8 3/16 2 .0300 33718 33822
SD 5/8 3/16 2 .0600 31685 31719
XL 1 3/16 4 .0050 31743 31866
3/16
XL 1 3/16 4 .0100 31744 31867
XL 1 3/16 4 .0150 31745 31868
XL 1 3/16 4 .0200 31746 31869
XL 1 3/16 4 .0300 31747 31522
XL 1 3/16 4 .0600 31748 31523
XL 1 1/4 3/16 3 .0050 31737 31860
XL 1 1/4 3/16 3 .0100 31738 31861
XL 1 1/4 3/16 3 .0150 31739 31862
XL 1 1/4 3/16 3 .0200 31740 31863
XL 1 1/4 3/16 3 .0300 31741 31864
XL 1 1/4 3/16 3 .0600 31742 31865
SD 5/8 1/4 2 1/2 .0150 31686 31720
SD 5/8 1/4 2 1/2 .0200 31687 31721
7/32 SD 5/8 1/4 2 1/2 .0300 31688 31525
SD 5/8 1/4 2 1/2 .0600 31689 31526
SD 5/8 1/4 2 1/2 .0900 31690 31527
STB 1/2 1/4 2 .0150 31918 31962
STB 1/2 1/4 2 .0200 31919 31963
STB 1/2 1/4 2 .0300 31920 31528
STB 1/2 1/4 2 .0600 31921 31529
STB 1/2 1/4 2 .0900 31922 31530
SD 3/4 1/4 2 1/2 .0150 33702 33806
SD 3/4 1/4 2 1/2 .0200 33711 33815
SD 3/4 1/4 2 1/2 .0300 33719 33790
SD 3/4 1/4 2 1/2 .0450 33726 33827
SD 3/4 1/4 2 1/2 .0600 31691 30970
1/4 SD 3/4 1/4 2 1/2 .0900 31692 30976
XL 1 1/8 1/4 3 .0150 31754 31872
XL 1 1/8 1/4 3 .0200 31755 31873
XL 1 1/8 1/4 3 .0300 31756 31532
XL 1 1/8 1/4 3 .0600 31757 31533
XL 1 1/8 1/4 3 .0900 31758 31534
XL 1 1/2 1/4 4 .0150 31749 31870
XL 1 1/2 1/4 4 .0200 31750 31871
XL 1 1/2 1/4 4 .0300 31751 31540
XL 1 1/2 1/4 4 .0600 31752 31541
XL 1 1/2 1/4 4 .0900 31753 31542
STB 1/2 5/16 2 1/2 .0150 31923 31964
STB 1/2 5/16 2 1/2 .0200 31924 31965
5/16 STB 1/2 5/16 2 1/2 .0300 31925 31544
STB 1/2 5/16 2 1/2 .0600 31926 31545
STB 1/2 5/16 2 1/2 .0900 31927 31546

Visit fullertontool.com for the most up to date information. 115
