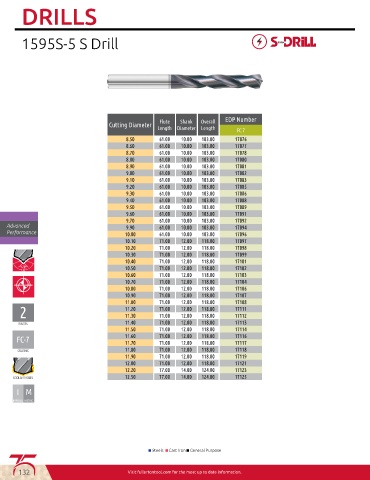

Page 134 - 75th-Online-Anniversary-Catalog

DRILLS

1595S-5 S Drill

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length FC 7
8.50 61.00 10.00 103.00 17076
8.60 61.00 10.00 103.00 17077
8.70 61.00 10.00 103.00 17078
8.80 61.00 10.00 103.00 17080
8.90 61.00 10.00 103.00 17081
9.00 61.00 10.00 103.00 17082
9.10 61.00 10.00 103.00 17083
9.20 61.00 10.00 103.00 17085
9.30 61.00 10.00 103.00 17086
9.40 61.00 10.00 103.00 17088
9.50 61.00 10.00 103.00 17089
9.60 61.00 10.00 103.00 17091
9.70 61.00 10.00 103.00 17092
Advanced 9.90 61.00 10.00 103.00 17094
Performance 10.00 61.00 10.00 103.00 17096
10.10 71.00 12.00 118.00 17097
10.20 71.00 12.00 118.00 17098
10.30 71.00 12.00 118.00 17099
10.40 71.00 12.00 118.00 17101
10.50 71.00 12.00 118.00 17102
10.60 71.00 12.00 118.00 17103
10.70 71.00 12.00 118.00 17104
10.80 71.00 12.00 118.00 17106
10.90 71.00 12.00 118.00 17107
11.00 71.00 12.00 118.00 17108
11.20 71.00 12.00 118.00 17111
11.30 71.00 12.00 118.00 17112
11.40 71.00 12.00 118.00 17113
11.50 71.00 12.00 118.00 17114
11.60 71.00 12.00 118.00 17116
11.70 71.00 12.00 118.00 17117
11.80 71.00 12.00 118.00 17118
11.90 71.00 12.00 118.00 17119
12.00 71.00 12.00 118.00 17121
12.20 77.00 14.00 124.00 17123
12.50 77.00 14.00 124.00 17125

I M
IMPERIAL METRIC

■ Steels ■ Cast Iron ■ General Purpose

132 Visit fullertontool.com for the most up to date information.
