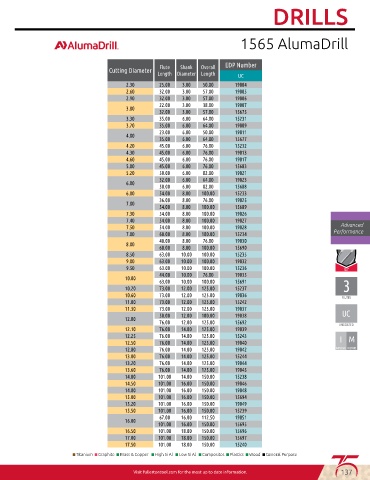

DRILLS

1565 AlumaDrill

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC
2.30 25.00 3.00 50.00 19004
2.60 32.00 3.00 57.00 19005
2.90 32.00 3.00 57.00 19006
22.00 3.00 38.00 19007
3.00
32.00 3.00 57.00 15675
3.30 35.00 6.00 64.00 15231
3.70 35.00 6.00 64.00 19009
23.00 6.00 50.00 19011
4.00
35.00 6.00 64.00 15677
4.20 45.00 6.00 76.00 15232
4.30 45.00 6.00 76.00 19013
4.60 45.00 6.00 76.00 19017
5.00 45.00 6.00 76.00 15683
5.20 50.00 6.00 82.00 19021
32.00 6.00 64.00 19023
6.00
50.00 6.00 82.00 15688
6.80 54.00 8.00 100.00 15233
36.00 8.00 76.00 19025
7.00
54.00 8.00 100.00 15689
7.30 54.00 8.00 100.00 19026
7.40 54.00 8.00 100.00 19027
7.50 54.00 8.00 100.00 19028 Advanced
7.80 60.00 8.00 100.00 15234 Performance
40.00 8.00 76.00 19030
8.00
60.00 8.00 100.00 15690
8.50 63.00 10.00 100.00 15235
9.00 63.00 10.00 100.00 19032
9.50 63.00 10.00 100.00 15236
44.00 10.00 76.00 19035
10.00
63.00 10.00 100.00 15691
10.20 73.00 12.00 125.00 15237
10.60 73.00 12.00 125.00 19036
11.00 73.00 12.00 125.00 15242
11.30 73.00 12.00 125.00 19037
50.00 12.00 100.00 19038
12.00
76.00 12.00 125.00 15692 UNCOATED
12.10 76.00 14.00 125.00 19039
12.25 76.00 14.00 125.00 15243 I M
12.50 76.00 14.00 125.00 19040
12.80 76.00 14.00 125.00 19042 IMPERIAL METRIC
13.00 76.00 14.00 125.00 15244
13.20 76.00 14.00 125.00 19044
13.60 76.00 14.00 125.00 19045
14.00 101.00 14.00 150.00 15238
14.50 101.00 16.00 150.00 19046
14.80 101.00 16.00 150.00 19048
15.00 101.00 16.00 150.00 15694
15.20 101.00 16.00 150.00 19049
15.50 101.00 16.00 150.00 15239
67.00 16.00 112.50 19051
16.00
101.00 16.00 150.00 15695
16.50 101.00 18.00 150.00 15696
17.00 101.00 18.00 150.00 15697
17.50 101.00 18.00 150.00 15240
■ Titanium ■ Graphite ■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ Wood ■ General Purpose
