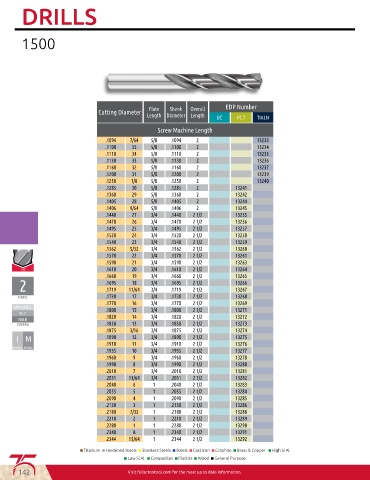

Page 144 - 75th-Online-Anniversary-Catalog

DRILLS

1500

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC FC 7 TIALN

Screw Machine Length
.1094 7/64 5/8 .1094 2 13233
.1100 35 5/8 .1100 2 13234
.1110 34 5/8 .1110 2 13235
.1130 33 5/8 .1130 2 13236
.1160 32 5/8 .1160 2 13237
.1200 31 5/8 .1200 2 13239
.1250 1/8 5/8 .1250 2 13240
.1285 30 5/8 .1285 2 13241
.1360 29 5/8 .1360 2 13242
.1405 28 5/8 .1405 2 13244
.1406 9/64 5/8 .1406 2 13245
.1440 27 3/4 .1440 2 1/2 13255
.1470 26 3/4 .1470 2 1/2 13256
.1495 25 3/4 .1495 2 1/2 13257
.1520 24 3/4 .1520 2 1/2 13258
.1540 23 3/4 .1540 2 1/2 13259
.1562 5/32 3/4 .1562 2 1/2 13260
.1570 22 3/4 .1570 2 1/2 13261
.1590 21 3/4 .1590 2 1/2 13263
.1610 20 3/4 .1610 2 1/2 13264
.1660 19 3/4 .1660 2 1/2 13265
.1695 18 3/4 .1695 2 1/2 13266
.1719 11/64 3/4 .1719 2 1/2 13267
.1730 17 3/4 .1730 2 1/2 13268
.1770 16 3/4 .1770 2 1/2 13269
UNCOATED .1800 15 3/4 .1800 2 1/2 13271
FC-7 .1820 14 3/4 .1820 2 1/2 13272
TIALN
.1850 13 3/4 .1850 2 1/2 13273
.1875 3/16 3/4 .1875 2 1/2 13274
I M .1890 12 3/4 .1890 2 1/2 13275
.1910 11 3/4 .1910 2 1/2 13276
IMPERIAL METRIC
.1935 10 3/4 .1935 2 1/2 13277
.1960 9 3/4 .1960 2 1/2 13278
.1990 8 3/4 .1990 2 1/2 13280
.2010 7 3/4 .2010 2 1/2 13281
.2031 13/64 3/4 .2031 2 1/2 13282
.2040 6 1 .2040 2 1/2 13283
.2055 5 1 .2055 2 1/2 13284
.2090 4 1 .2090 2 1/2 13285
.2130 3 1 .2130 2 1/2 13286
.2188 7/32 1 .2188 2 1/2 13288
.2210 2 1 .2210 2 1/2 13289
.2280 1 1 .2280 2 1/2 13290
.2340 A 1 .2340 2 1/2 13291
.2344 15/64 1 .2344 2 1/2 13292
■ Titanium ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Composites ■ Plastics ■ Wood ■ General Purpose
142 Visit fullertontool.com for the most up to date information.
