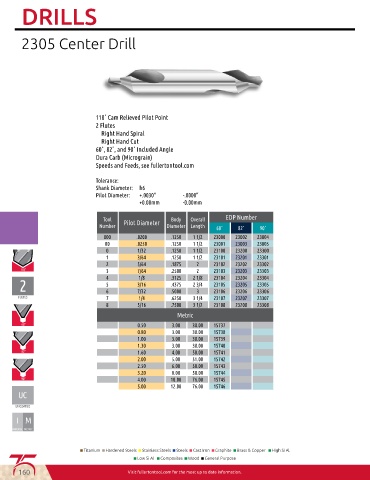

Page 162 - 75th-Online-Anniversary-Catalog

DRILLS

2305 Center Drill

118˚ Cam Relieved Pilot Point
2 Flutes
Right Hand Spiral
Right Hand Cut
60˚, 82˚, and 90˚ Included Angle
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Pilot Diameter: +.0030” -.0000”
+0.08mm -0.00mm

Tool Body Overall EDP Number
Number Pilot Diameter Diameter Length 60˚ 82˚ 90˚
000 .0200 .1250 1 1/2 23000 23002 23004
00 .0250 .1250 1 1/2 23001 23003 23005
0 1/32 .1250 1 1/2 23100 23200 23300
1 3/64 .1250 1 1/2 23101 23201 23301
2 5/64 .1875 2 23102 23202 23302
3 7/64 .2500 2 23103 23203 23303
4 1/8 .3125 2 1/8 23104 23204 23304
5 3/16 .4375 2 3/4 23105 23205 23305
6 7/32 .5000 3 23106 23206 23306
7 1/4 .6250 3 1/4 23107 23207 23307
8 5/16 .7500 3 1/2 23108 23208 23308
Metric
0.50 3.00 38.00 15737
0.80 3.00 38.00 15738
1.00 3.00 38.00 15739
1.30 3.00 38.00 15740
1.60 4.00 50.00 15741
2.00 5.00 51.00 15742
2.50 6.00 50.00 15743
3.20 8.00 50.00 15744
4.00 10.00 76.00 15745
5.00 12.00 76.00 15746

UNCOATED

I M
IMPERIAL METRIC

■ Titanium ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Composites ■ Wood ■ General Purpose
160 Visit fullertontool.com for the most up to date information.
