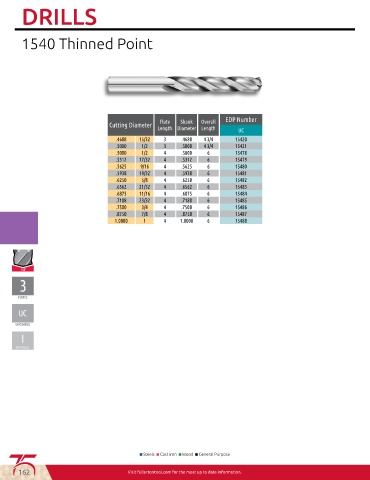

DRILLS
1540 Thinned Point
Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC
.4688 15/32 3 .4688 4 3/4 15420
.5000 1/2 3 .5000 4 3/4 15421
.5000 1/2 4 .5000 6 15478
.5312 17/32 4 .5312 6 15479
.5625 9/16 4 .5625 6 15480
.5938 19/32 4 .5938 6 15481
.6250 5/8 4 .6250 6 15482
.6562 21/32 4 .6562 6 15483
.6875 11/16 4 .6875 6 15484
.7188 23/32 4 .7188 6 15485
.7500 3/4 4 .7500 6 15486
.8750 7/8 4 .8750 6 15487
1.0000 1 4 1.0000 6 15488
UNCOATED
I
IMPERIAL
■ Steels ■ Cast Iron ■ Wood ■ General Purpose
