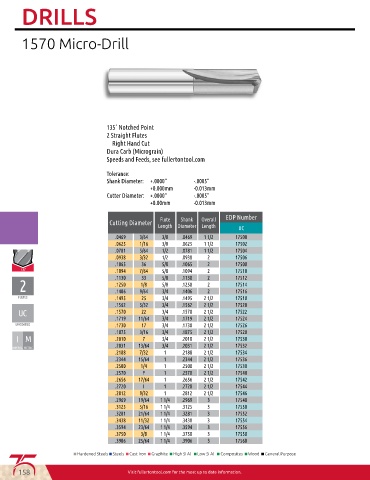

Page 160 - 75th-Online-Anniversary-Catalog

DRILLS

1570 Micro-Drill

135˚ Notched Point
2 Straight Flutes
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: +.0000” -.0005”
+0.000mm -0.013mm
Cutter Diameter: +.0000” -.0005”
+0.00mm -0.013mm

Cutting Diameter Flute Shank Overall EDP Number
Length Diameter Length UC
.0469 3/64 3/8 .0469 1 1/2 17500
.0625 1/16 3/8 .0625 1 1/2 17502
.0781 5/64 1/2 .0781 1 1/2 17504
.0938 3/32 1/2 .0938 2 17506
.1065 36 5/8 .1065 2 17508
.1094 7/64 5/8 .1094 2 17510
.1130 33 5/8 .1130 2 17512
.1250 1/8 5/8 .1250 2 17514
.1406 9/64 3/4 .1406 2 17516
.1495 25 3/4 .1495 2 1/2 17518
.1562 5/32 3/4 .1562 2 1/2 17520
.1570 22 3/4 .1570 2 1/2 17522
.1719 11/64 3/4 .1719 2 1/2 17524
UNCOATED .1730 17 3/4 .1730 2 1/2 17526
.1875 3/16 3/4 .1875 2 1/2 17528
I M .2010 7 3/4 .2010 2 1/2 17530
.2031 13/64 3/4 .2031 2 1/2 17532
IMPERIAL METRIC
.2188 7/32 1 .2188 2 1/2 17534
.2344 15/64 1 .2344 2 1/2 17536
.2500 1/4 1 .2500 2 1/2 17538
.2570 F 1 .2570 2 1/2 17540
.2656 17/64 1 .2656 2 1/2 17542
.2720 I 1 .2720 2 1/2 17544
.2812 9/32 1 .2812 2 1/2 17546
.2969 19/64 1 1/4 .2969 3 17548
.3125 5/16 1 1/4 .3125 3 17550
.3281 21/64 1 1/4 .3281 3 17552
.3438 11/32 1 1/4 .3438 3 17554
.3594 23/64 1 1/4 .3594 3 17556
.3750 3/8 1 1/4 .3750 3 17558
.3906 25/64 1 1/4 .3906 3 17560

■ Hardened Steels ■ Steels ■ Cast Iron ■ Graphite ■ High Si Al ■ Low Si Al ■ Composites ■ Wood ■ General Purpose

158 Visit fullertontool.com for the most up to date information.
