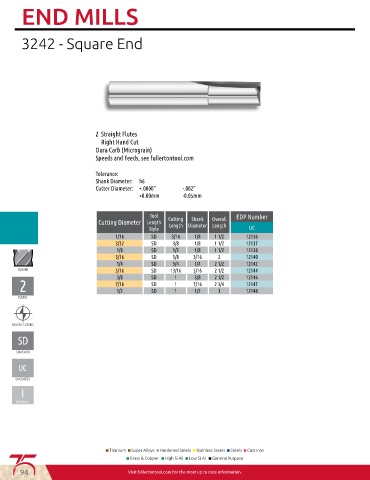

END MILLS

3242 - Square End

2 Straight Flutes
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Length Diameter Length
Style UC
1/16 SD 3/16 1/8 1 1/2 12136
3/32 SD 3/8 1/8 1 1/2 12137
1/8 SD 1/2 1/8 1 1/2 12138
3/16 SD 5/8 3/16 2 12140
1/4 SD 3/4 1/4 2 1/2 12142
5/16 SD 13/16 5/16 2 1/2 12144
3/8 SD 1 3/8 2 1/2 12146
7/16 SD 1 7/16 2 3/4 12147
1/2 SD 1 1/2 3 12148

UNCOATED
I
IMPERIAL

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ General Purpose
