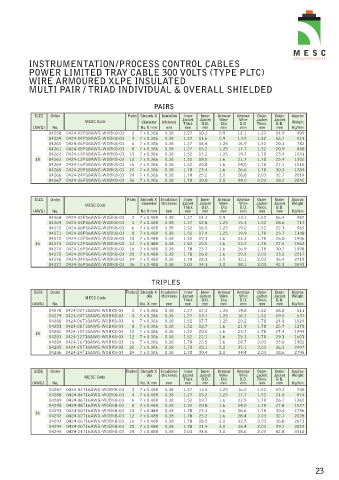

Page 27 - MESCInstrumentationCatalogue

INSTRUMENTATION / PROCESS CONTROL CABLES
POWER LIMITED TRAY CABLE 300 VOLTS (TYPE PLTC)
WIRE ARMOURED XLPE INSULATED
MULTI PAIR / TRIAD INDIVIDUAL & OVERALL SHIELDED

PAIRS
SIZE Order Pairs Strands X Insulation Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code diameter thickness Weight
Thick O.D. Dia O.D. Thick. O.D.
(AWG) No. No X mm mm mm mm mm mm mm mm Kg/Km
04258 0424-02P18AWG-W0BK8-03 2 7 x 0.386 0.38 1.27 10.3 0.9 12.1 1.27 14.9 409
04259 0424-04P18AWG-W0BK8-03 4 7 x 0.386 0.38 1.27 11.6 0.9 14 1.52 16.7 521
3
.
04260 0424-06P18AWG-W0BK8-03 6 7 x 0.386 0.38 1.27 14.4 1.25 16.9 1.52 20.1 782
04261 0424-08P18AWG-W0BK8-03 8 7 x 0.386 0.38 1.27 15.2 1.25 17.7 1.52 20.9 868
04262 0424-10P18AWG-W0BK8-03 10 7 x 0.386 0.38 1.52 17.2 1.25 19.7 1.78 23.4 1041
18 04263 0424-12P18AWG-W0BK8-03 12 7 x 0.386 0.38 1.52 18.5 1.6 21.7 1.78 25.4 1302
04264 0424-16P18AWG-W0BK8-03 16 7 x 0.386 0.38 1.52 20.8 1.6 24.0 1.78 27.7 1516
04265 0424-20P18AWG-W0BK8-03 20 7 x 0.386 0.38 1.78 23.4 1.6 26.6 1.78 30.3 1784
04266 0424-24P18AWG-W0BK8-03 24 7 x 0.386 0.38 1.78 25.2 2.0 28.8 2.03 32.7 2014
04267 0424-36P18AWG-W0BK8-03 36 7 x 0.386 0.38 1.78 30.0 2.0 34.0 2.03 38.2 2845
SIZE Order Pairs Strands X Insulation Inner Inner Armour Armour Outer Outer Approx
diameter thickness Jacket Jacket Wire Wire Jacket Jacket Weight
MESC Code
Thick O.D. Dia O.D. Thick. O.D.
(AWG) No. No X mm mm mm mm mm mm mm mm Kg/Km
04268 0424-02P16AWG-W0BK8-03 2 7 x 0.488 0.38 1.27 11.3 0.9 13.1 1.52 16.4 487
04269 0424-04P16AWG-W0BK8-03 4 7 x 0.488 0.38 1.27 12.8 1.25 15.3 1.52 18.6 717
04270 0424-06P16AWG-W0BK8-03 6 7 x 0.488 0.38 1.52 16.5 1.25 19.0 1.52 22.3 965
04271 0424-08P16AWG-W0BK8-03 8 7 x 0.488 0.38 1.52 17.4 1.25 19.9 1.78 23.7 1108
04272 0424-10P16AWG-W0BK8-03 10 7 x 0.488 0.38 1.52 19.1 1.6 22.3 1.78 26.0 1406
16 04273 0424-12P16AWG-W0BK8-03 12 7 x 0.488 0.38 1.52 20.5 1.6 23.7 1.78 27.5 1562
04274 0424-16P16AWG-W0BK8-03 16 7 x 0.488 0.38 1.78 23.7 1.6 26.9 1.78 30.7 1908
04275 0424-20P16AWG-W0BK8-03 20 7 x 0.488 0.38 1.78 26.0 1.6 29.2 2.03 33.5 2217
04276 0424-24P16AWG-W0BK8-03 24 7 x 0.488 0.38 1.78 28.1 2.0 32.1 2.03 36.4 2719
04277 0424-36P16AWG-W0BK8-03 36 7 x 0.488 0.38 2.03 34.1 2.0 38.1 2.03 42.3 3593

TRIPLES

SIZE Order Triples Strands X Insulation Inner Inner Armour Armour Outer Outer Approx
dia thickness Jacket Jacket Wire Wire Jacket Jacket Weight
MESC Code
Thick O.D. Dia O.D. Thick. O.D.
(AWG) No. No. X mm mm mm mm mm mm mm mm Kg/Km
04278 0424-02T18AWG-W0BK8-03 2 7 x 0.386 0.38 1.27 12.3 1.25 14.8 1.52 18.0 611
04279 0424-04T18AWG-W0BK8-03 4 7 x 0.386 0.38 1.27 13.7 1.25 16.2 1.52 19.5 637
04280 0424-06T18AWG-W0BK8-03 6 7 x 0.386 0.38 1.52 17.7 1.25 20.2 1.78 24.0 1024
04281 0424-08T18AWG-W0BK8-03 8 7 x 0.386 0.38 1.52 18.7 1.6 21.9 1.78 25.7 1278
04282 0424-10T18AWG-W0BK8-03 10 7 x 0.386 0.38 1.52 20.5 1.6 23.7 1.78 27.4 1449
18
04283 0424-12T18AWG-W0BK8-03 12 7 x 0.386 0.38 1.52 22.1 1.6 25.3 1.78 29.1 1601
04284 0424-16T18AWG-W0BK8-03 16 7 x 0.386 0.38 1.78 25.5 1.6 28.7 2.03 33.0 1982
04285 0424-20T18AWG-W0BK8-03 20 7 x 0.386 0.38 1.78 28.1 2.0 32.1 2.03 36.3 2497
04286 0424-24T18AWG-W0BK8-03 24 7 x 0.386 0.38 1.78 30.4 2.0 34.4 2.03 38.6 2795

SIZE Order Triples Strands X Insulation Inner Inner Armour Armour Outer Outer Approx
MESC Code dia thickness Jacket Jacket Wire Wire Jacket Jacket Weight
Thick O.D. Dia O.D. Thick. O.D.
(AWG) No. No. X mm mm mm mm mm mm mm mm Kg/Km
04287 0424-02T16AWG-W0BK8-03 2 7 x 0.488 0.38 1.27 13.5 1.25 16.0 1.52 19.3 700
04288 0424-04T16AWG-W0BK8-03 4 7 x 0.488 0.38 1.27 15.2 1.25 17.7 1.52 21.0 874
04289 0424-06T16AWG-W0BK8-03 6 7 x 0.488 0.38 1.52 19.7 1.6 22.9 1.78 26.7 1365
04290 0424-08T16AWG-W0BK8-03 8 7 x 0.488 0.38 1.52 20.8 1.6 24.0 1.78 27.8 1527
04291 0424-10T16AWG-W0BK8-03 10 7 x 0.488 0.38 1.78 23.4 1.6 26.6 1.78 30.4 1796
16
04292 0424-12T16AWG-W0BK8-03 12 7 x 0.488 0.38 1.78 25.2 1.6 28.4 2.03 32.7 2028
04293 0424-16T16AWG-W0BK8-03 16 7 x 0.488 0.38 1.78 28.5 2.0 32.5 2.03 36.8 2673
04294 0424-20T16AWG-W0BK8-03 20 7 x 0.488 0.38 1.78 31.4 2.0 35.4 2.03 39.7 3053
04295 0424-24T16AWG-W0BK8-03 24 7 x 0.488 0.38 2.03 34.6 2.0 38.6 2.03 42 .8 3510
