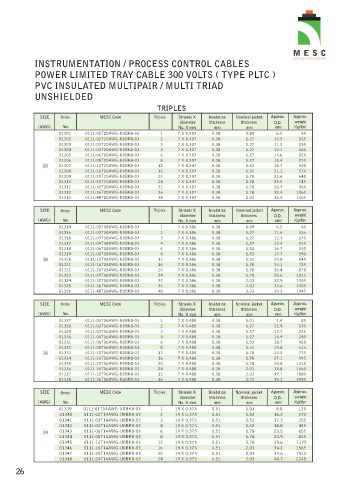

INSTRUMENTATION / PROCESS CONTROL CABLES

POWER LIMITED TRAY CABLE 300 VOLTS ( TYPE PLTC )
PVC INSULATED MULTIPAIR / MULTI TRIAD
UNSHIELDED

TRIPLES
SIZE Order MESC Code Triples Strands X Insulation Nominal jacket Approx. Approx.
diameter thickness thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01301 0111-01T20AWG-U0BK8-03 1 7 X 0.307 0.38 0.89 6.0 50
01302 0111-02T20AWG-U0BK8-03 2 7 X 0.307 0.38 1.27 10.5 105
01303 0111-03T20AWG-U0BK8-03 3 7 X 0.307 0.38 1.27 11.2 135
01304 0111-04T20AWG-U0BK8-03 4 7 X 0.307 0.38 1.27 12.1 160
01305 0111-06T20AWG-U0BK8-03 6 7 X 0.307 0.38 1.27 14.6 220
01306 0111-08T20AWG-U0BK8-03 8 7 X 0.307 0.38 1.27 15.4 270
20 01307 0111-12T20AWG-U0BK8-03 12 7 X 0.307 0.38 1.52 18.7 400
01308 0111-16T20AWG-U0BK8-03 16 7 X 0.307 0.38 1.52 21.1 510
01309 0111-20T20AWG-U0BK8-03 20 7 X 0.307 0.38 1.78 23.6 640
01310 0111-24T20AWG-U0BK8-03 24 7 X 0.307 0.38 1.78 25.5 745
01311 0111-32T20AWG-U0BK8-03 32 7 X 0.307 0.38 1.78 28.9 960
01312 0111-36T20AWG-U0BK8-03 36 7 X 0.307 0.38 1.78 30.4 1060
01313 0111-48T20AWG-U0BK8-03 48 7 X 0.307 0.38 2.03 35.0 1405

SIZE Order MESC Code Triples Strands X Insulation Nominal jacket Approx. Approx.
diameter thickness thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01314 0111-01T18AWG-U0BK8-03 1 7 X 0.386 0.38 0.89 6.5 60
01315 0111-02T18AWG-U0BK8-03 2 7 X 0.386 0.38 1.27 11.6 135
01316 0111-03T18AWG-U0BK8-03 3 7 X 0.386 0.38 1.27 12.3 170
01317 0111-04T18AWG-U0BK8-03 4 7 X 0.386 0.38 1.27 13.4 210
01318 0111-06T18AWG-U0BK8-03 6 7 X 0.386 0.38 1.52 16.7 310
01319 0111-08T18AWG-U0BK8-03 8 7 X 0.386 0.38 1.52 17.7 390
18 01320 0111-12T18AWG-U0BK8-03 12 7 X 0.386 0.38 1.52 20.8 540
01321 0111-16T18AWG-U0BK8-03 16 7 X 0.386 0.38 1.78 24.1 725
01322 0111-20T18AWG-U0BK8-03 20 7 X 0.386 0.38 1.78 26.4 870
01323 0111-24T18AWG-U0BK8-03 24 7 X 0.386 0.38 1.78 28.6 1025
01324 0111-32T18AWG-U0BK8-03 32 7 X 0.386 0.38 2.03 32.9 1355
01325 0111-36T18AWG-U0BK8-03 36 7 X 0.386 0.38 2.03 34.6 1500
01326 0111-48T18AWG-U0BK8-03 48 7 X 0.386 0.38 2.03 39.3 1945
SIZE Order MESC Code Triples Strands X Insulation Nominal jacket Approx. Approx.
diameter thickness thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01327 0111-01T16AWG-U0BK8-03 1 7 X 0.488 0.38 1.01 7.4 85
01328 0111-02T16AWG-U0BK8-03 2 7 X 0.488 0.38 1.27 12.9 170
01329 0111-03T16AWG-U0BK8-03 3 7 X 0.488 0.38 1.27 13.7 225
01330 0111-04T16AWG-U0BK8-03 4 7 X 0.488 0.38 1.27 14.9 280
01331 0111-06T16AWG-U0BK8-03 6 7 X 0.488 0.38 1.52 18.7 420
01332 0111-08T16AWG-U0BK8-03 8 7 X 0.488 0.38 1.52 19.8 525
16 01333 0111-12T16AWG-U0BK8-03 12 7 X 0.488 0.38 1.78 24.0 775
01334 0111-16T16AWG-U0BK8-03 16 7 X 0.488 0.38 1.78 27.1 995
01335 0111-20T16AWG-U0BK8-03 20 7 X 0.488 0.38 1.78 29.8 1210
01336 0111-24T16AWG-U0BK8-03 24 7 X 0.488 0.38 2.03 32.8 1460
01337 0111-32T16AWG-U0BK8-03 32 7 X 0.488 0.38 2.03 37.1 1880
01338 0111-36T16AWG-U0BK8-03 36 7 X 0.488 0.38 2.03 39.1 2095

SIZE Order MESC Code Triples Strands X Insulation Nominal jacket Approx. Approx.
diameter thickness thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01339 0111-01T14AWG-UOBK8-03 1 19 X 0.373 0.51 1.01 8.8 120
01340 0111-02T14AWG-U0BK8-03 2 19 X 0.373 0.51 1.52 16.2 270
01341 0111-03T14AWG-U0BK8-03 3 19 X 0.373 0.51 1.52 17.3 355
01342 0111-04T14AWG-U0BK8-03 4 19 X 0.373 0.51 1.52 18.8 445
14 01343 0111-06T14AWG-U0BK8-03 6 19 X 0.373 0.51 1.78 23.5 655
01344 0111-08T14AWG-U0BK8-03 8 19 X 0.373 0.51 1.78 24.9 825
01345 0111-12T14AWG-U0BK8-03 12 19 X 0.373 0.51 1.78 29.6 1175
01346 0111-16T14AWG-U0BK8-03 16 19 X 0.373 0.51 2.03 34.1 1565
01347 0111-20T14AWG-U0BK8-03 20 19 X 0.373 0.51 2.03 37.6 1910
01348 0111-24T14AWG-U0BK8-03 24 19 X 0.373 0.51 2.03 40.7 2245
