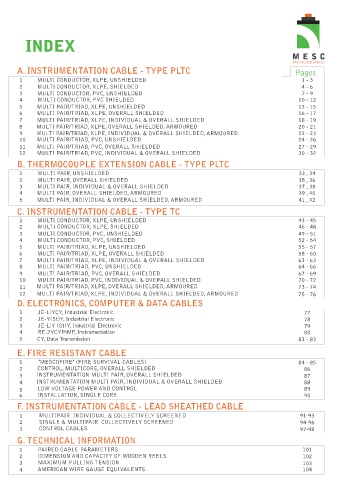

INDEX

A. INSTRUMENTATION CABLE - TYPE PLTC Pages
1 MULTI CONDUCTOR, XLPE, UNSHIELDED 1 - 3
2 MULTI CONDUCTOR, XLPE, SHIELDED 4 - 6
3 MULTI CONDUCTOR, PVC, UNSHIELDED 7 - 9
4 MULTI CONDUCTOR, PVC SHIELDED 10 - 12
5 MULTI PAIR/TRIAD, XLPE, UNSHIELDED 13 - 15
6 MULTI PAIR/TRIAD, XLPE, OVERALL SHIELDED 16 - 17
7 MULTI PAIR/TRIAD, XLPE, INDIVIDUAL & OVERALL SHIELDED 18 - 19
8 MULTI PAIR/TRIAD, XLPE, OVERALL SHIELDED, ARMOURED 20 - 21
9 MULTI PAIR/TRIAD, XLPE, INDIVIDUAL & OVERALL SHIELDED, ARMOURED 22 - 23
10 MULTI PAIR/TRIAD, PVC, UNSHIELDED 24 - 26
11 MULTI PAIR/TRIAD, PVC, OVERALL SHIELDED 27 - 29
12 MULTI PAIR/TRIAD, PVC, INDIVIDUAL & OVERALL SHIELDED 30 - 32
B. THERMOCOUPLE EXTENSION CABLE - TYPE PLTC

1 MULTI PAIR, UNSHIELDED 33 , 34
2 MULTI PAIR, OVERALL SHIELDED 35 , 36
3 MULTI PAIR, INDIVIDUAL & OVERALL SHIELDED 37 , 38
4 MULTI PAIR, OVERALL SHIELDED, ARMOURED 39 , 40
5 MULTI PAIR, INDIVIDUAL & OVERALL SHIELDED, ARMOURED 41 , 42

C. INSTRUMENTATION CABLE - TYPE TC
1 MULTI CONDUCTOR, XLPE, UNSHIELDED 43 - 45
2 MULTI CONDUCTOR, XLPE, SHIELDED 46 - 48
3 MULTI CONDUCTOR, PVC, UNSHIELDED 49 - 51
4 MULTI CONDUCTOR, PVC, SHIELDED 52 - 54
5 MULTI PAIR/TRIAD, XLPE, UNSHIELDED 55 - 57
6 MULTI PAIR/TRIAD, XLPE, OVERALL SHIELDED 58 - 60
7 MULTI PAIR/TRIAD, XLPE, INDIVIDUAL & OVERALL SHIELDED 61 - 63
8 MULTI PAIR/TRIAD, PVC, UNSHIELDED 64 - 66
9 MULTI PAIR/TRIAD, PVC, OVERALL SHIELDED 67 - 69
10 MULTI PAIR/TRIAD, PVC, INDIVIDUAL & OVERALL SHIELDED 70 - 72
11 MULTI PAIR/TRIAD, XLPE, OVERALL SHIELDED, ARMOURED 73 - 74
12 MULTI PAIR/TRIAD, XLPE, INDIVIDUAL & OVERALL SHIELDED, ARMOURED 75 - 76
D. ELECTRONICS, COMPUTER & DATA CABLES
1 JE-LiYCY, Industrial Electronic 77
2 JE-Y(St)Y, Industrial Electronic 78
3 JE-LiY (St)Y, Industrial Electronic 79
4 RE-2YCYPiMF, Instrumentation 80
5 CY, Data Transmission 81 - 83

E. FIRE RESISTANT CABLE
1 "MESCOFIRE" (FIRE SURVIVAL CABLES) 84 - 85
2 CONTROL, MULTICORE, OVERALL SHIELDED 86
3 INSTRUMENTATION MULTI PAIR, OVERALL SHIELDED 87
4 INSTRUMENTATION MULTI PAIR, INDIVIDUAL & OVERALL SHIELDED 88
5 LOW VOLTAGE POWER AND CONTROL 89
6 INSTALLATION, SINGLE CORE 90
F. INSTRUMENTATION CABLE - LEAD SHEATHED CABLE

1 MULTIPAIR INDIVIDUAL & COLLECTIVELY SCREENED 91-93
2 SINGLE & MULTIPAIR COLLECTIVELY SCREENED 94-96
3 CONTROL CABLES 97-98
G. TECHNICAL INFORMATION
1 PAIRED CABLE PARAMETERS 101
2 DIMENSION AND CAPACITY OF WOODEN REELS 102
3 MAXIMUM PULLING TENSION 103
4 AMERICAN WIRE GAUGE EQUIVALENTS 104
