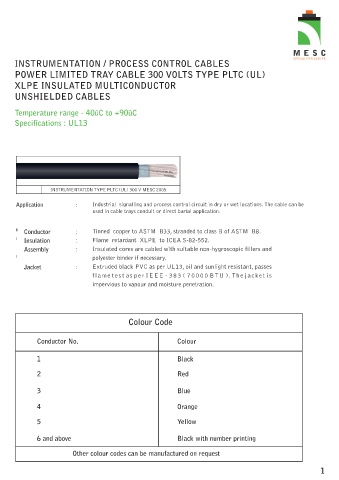

Page 5 - MESCInstrumentationCatalogue

INSTRUMENTATION / PROCESS CONTROL CABLES

POWER LIMITED TRAY CABLE 300 VOLTS TYPE PLTC (UL)
XLPE INSULATED MULTICONDUCTOR
UNSHIELDED CABLES

Temperature range - 40ûC to +90ûC
Specifications : UL13

INSTRUMENTATION TYPE PLTC (UL) 300 V MESC 2005

Application : Industrial signalling and process control circuit in dry or wet locations. The cable can be
used in cable trays conduit or direct burial application.

ll Conductor : Tinned copper to ASTM B33, stranded to class B of ASTM B8.
l
Insulation : Flame retardant XLPE to ICEA S-82-552.
Assembly : Insulated cores are cabled with suitable non-hygroscopic fillers and
l polyester binder if necessary.
Jacket : Extruded black PVC as per UL13, oil and sunlight resistant, passes
flame tes t as per IEEE - 383 ( 70000 BTU ). The jacket is
impervious to vapour and moisture penetration.

Colour Code

Conductor No. Colour

1 Black

2 Red

3 Blue

4 Orange

5 Yellow

6 and above Black with number printing

Other colour codes can be manufactured on request
