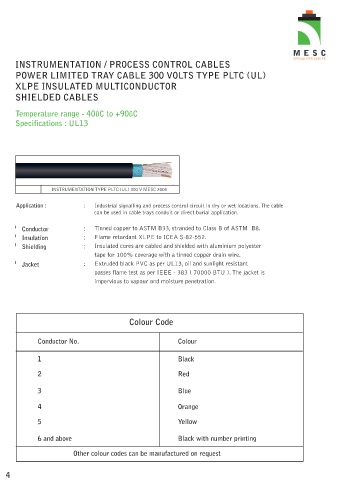

INSTRUMENTATION / PROCESS CONTROL CABLES

POWER LIMITED TRAY CABLE 300 VOLTS TYPE PLTC (UL)
XLPE INSULATED MULTICONDUCTOR
SHIELDED CABLES

Temperature range - 40ûC to +90ûC
Specifications : UL13

INSTRUMENTATION TYPE PLTC (UL) 300 V MESC 2005

Application : : Industrial signalling and process control circuit in dry or wet locations. The cable
can be used in cable trays conduit or direct burial application.

l
Conductor : Tinned copper to ASTM B33, stranded to Class B of ASTM B8.
l
Insulation : Flame retardant XLPE to ICEA S-82-552.
l
Shielding : Insulated cores are cabled and shielded with aluminium polyester
tape for 100% coverage with a tinned copper drain wire.
l
Jacket : Extruded black PVC as per UL13, oil and sunlight resistant
passes flame test as per IEEE - 383 ( 70000 BTU ). The jacket is
impervious to vapour and moisture penetration.

Colour Code

Conductor No. Colour

1 Black

2 Red

3 Blue

4 Orange

5 Yellow

6 and above Black with number printing

Other colour codes can be manufactured on request
