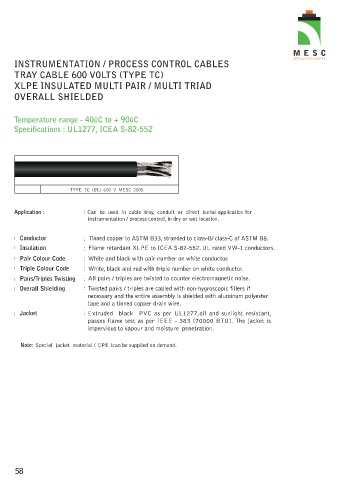

INSTRUMENTATION / PROCESS CONTROL CABLES

TRAY CABLE 600 VOLTS (TYPE TC)
XLPE INSULATED MULTI PAIR / MULTI TRIAD
OVERALL SHIELDED

Temperature range - 40ûC to + 90ûC
Specifications : UL1277, ICEA S-82-552

TYPE TC (UL) 600 V MESC 2005

Application : : Can be used in cable tray, conduit or direct burial application for
instrumentation / process control, in dry or wet location.

l Conductor : Tinned copper to ASTM B33, stranded to class-B/ class-C of ASTM B8.
l Insulation : Flame retardant XLPE to ICEA S-82-552. UL rated VW-1 conductors.
l Pair Colour Code : White and black with pair number on white conductor.
l Triple Colour Code : White, black and red with triple number on white conductor.
l Pairs/Triples Twisting : All pairs / triples are twisted to counter electromagnetic noise.

l Overall Shielding : Twisted pairs / triples are cabled with non-hygroscopic fillers if
necessary and the entire assembly is shielded with aluminum polyester
tape and a tinned copper drain wire.
l Jacket : Extruded black PVC as per UL1277,oil and sunlight resistant,

passes flame test as per IEEE - 383 (70000 BTU). The jacket is
impervious to vapour and moisture penetration.

Note: Special jacket material ( CPE )can be supplied on demand.
