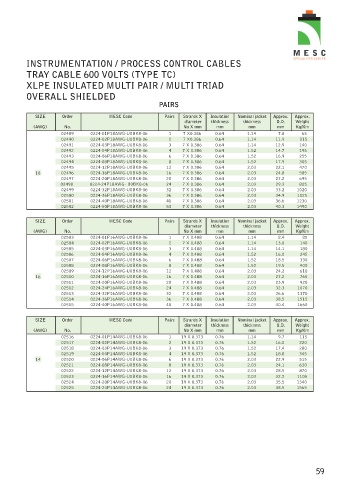

INSTRUMENTATION / PROCESS CONTROL CABLES

TRAY CABLE 600 VOLTS (TYPE TC)
XLPE INSULATED MULTI PAIR / MULTI TRIAD
OVERALL SHIELDED
PAIRS

SIZE Order MESC Code Pairs Strands X Insulation Nominal jacket Approx. Approx.
diameter thickness thickness O.D. Weight
(AWG) No. No X mm mm mm mm Kg/Km
02489 0224-01P18AWG-U0BK8-06 1 7 X0.386 0.64 1.14 7.8 65
02490 0224-02P18AWG-U0BK8-06 2 7 X0.386 0.64 1.14 11.9 115
02491 0224-03P18AWG-U0BK8-06 3 7 X 0.386 0.64 1.14 12.9 140
02492 0224-04P18AWG-U0BK8-06 4 7 X 0.386 0.64 1.52 14.7 195
02493 0224-06P18AWG-U0BK8-06 6 7 X 0.386 0.64 1.52 16.9 255
02494 0224-08P18AWG-U0BK8-06 8 7 X 0.386 0.64 1.52 17.9 305
02495 0224-12P18AWG-U0BK8-06 12 7 X 0.386 0.64 2.03 22.1 470
18 02496 0224-16P18AWG-U0BK8-06 16 7 X 0.386 0.64 2.03 24.8 585
02497 0224-20P18AWG-U0BK8-06 20 7 X 0.386 0.64 2.03 27.2 695
02498 0224-24P18AWG- U0BK8-06 24 7 X 0.386 0.64 2.03 29.3 805
02499 0224-32P18AWG-U0BK8-06 32 7 X 0.386 0.64 2.03 33.2 1020
02500 0224-36P18AWG-U0BK8-06 36 7 X 0.386 0.64 2.03 34.9 1125
02501 0224-40P18AWG-U0BK8-06 40 7 X 0.386 0.64 2.03 36.6 1230
02502 0224-50P18AWG-U0BK8-06 50 7 X 0.386 0.64 2.03 40.3 1490

SIZE Order MESC Code Pairs Strands X Insulation Nominal jacket Approx. Approx.
diameter thickness thickness O.D. Weight
(AWG) No. No X mm mm mm mm Kg/Km
02503 0224-01P16AWG-U0BK8-06 1 7 X 0.488 0.64 1.14 8.4 85
02504 0224-02P16AWG-U0BK8-06 2 7 X 0.488 0.64 1.14 13.0 140
02505 0224-03P16AWG-U0BK8-06 3 7 X 0.488 0.64 1.14 14.1 180
02506 0224-04P16AWG-U0BK8-06 4 7 X 0.488 0.64 1.52 16.0 245
02507 0224-06P16AWG-U0BK8-06 6 7 X 0.488 0.64 1.52 18.5 330
02508 0224-08P16AWG-U0BK8-06 8 7 X 0.488 0.64 1.52 19.5 400
02509 0224-12P16AWG-U0BK8-06 12 7 X 0.488 0.64 2.03 24.2 610
16 02510 0224-16P16AWG-U0BK8-06 16 7 X 0.488 0.64 2.03 27.2 765
02511 0224-20P16AWG-U0BK8-06 20 7 X 0.488 0.64 2.03 23.9 920
02512 0224-24P16AWG-U0BK8-06 24 7 X 0.488 0.64 2.03 32.3 1070
02513 0224-32P16AWG-U0BK8-06 32 7 X 0.488 0.64 2.03 36.6 1370
02514 0224-36P16AWG-U0BK8-06 36 7 X 0.488 0.64 2.03 38.5 1515
02515 0224-40P16AWG-U0BK8-06 40 7 X 0.488 0.64 2.03 40.4 1660

SIZE Order MESC Code Pairs Strands X Insulation Nominal jacket Approx. Approx.
diameter thickness thickness O.D. Weight
(AWG) No. No X mm mm mm mm Kg/Km
02516 0224-01P14AWG-U0BK8-06 1 19 X 0.373 0.76 1.14 9.7 115
02517 0224-02P14AWG-U0BK8-06 2 19 X 0.373 0.76 1.52 16.0 220
02518 0224-03P14AWG-U0BK8-06 3 19 X 0.373 0.76 1.52 17.4 280
02519 0224-04P14AWG-U0BK8-06 4 19 X 0.373 0.76 1.52 18.8 345
14 02520 0224-06P14AWG-U0BK8-06 6 19 X 0.373 0.76 2.03 22.9 515
02521 0224-08P14AWG-U0BK8-06 8 19 X 0.373 0.76 2.03 24.1 630
02522 0224-12P14AWG-U0BK8-06 12 19 X 0.373 0.76 2.03 28.5 870
02523 0224-16P14AWG-U0BK8-06 16 19 X 0.373 0.76 2.03 32.2 1105
02524 0224-20P14AWG-U0BK8-06 20 19 X 0.373 0.76 2.03 35.5 1340
02525 0224-24P14AWG-U0BK8-06 24 19 X 0.373 0.76 2.03 38.5 1565
