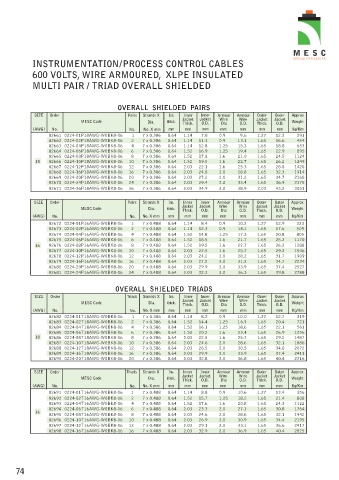

Page 78 - MESCInstrumentationCatalogue

INSTRUMENTATION / PROCESS CONTROL CABLES

600 VOLTS, WIRE ARMOURED, XLPE INSULATED
MULTI PAIR / TRIAD OVERALL SHIELDED

OVERALL SHIELDED PAIRS
SIZE Order Pairs Strands X Ins. Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code Dia. thick. Thick. O.D. Dia O.D. Thick. O.D. Weight
(AWG) No. No. No. X mm mm mm mm mm mm mm mm Kg/Km
02661 0224-01P18AWG-W0BK8-06 1 7 x 0.386 0.64 1.14 7.8 0.9 9.6 1.27 12.3 291
3
02662 0224-02P18AWG-W0BK8-06 2 7 x 0.386 0.64 1.14 11.3 0.9 11 1.65 16.6 454
.
02663 0224-04P18AWG-W0BK8-06 4 7 x 0.386 0.64 1.14 12.8 1.25 15.3 1.65 18.8 653
02664 0224-06P18AWG-W0BK8-06 6 7 x 0.386 0.64 1.52 16.9 1.25 19.4 1.65 22.9 895
02665 0224-08P18AWG-W0BK8-06 8 7 x 0.386 0.64 1.52 17.8 1.6 21.0 1.65 24.5 1124
18 02666 0224-10P18AWG-W0BK8-06 10 7 x 0.386 0.64 1.52 19.5 1.6 22.7 1.65 26.2 1249
02667 0224-12P18AWG-W0BK8-06 12 7 x 0.386 0.64 2.03 22.1 1.6 25.3 1.65 28.8 1420
02668 0224-16P18AWG-W0BK8-06 16 7 x 0.386 0.64 2.03 24.8 2.0 28.8 1.65 32.3 1914
02669 0224-20P18AWG-W0BK8-06 20 7 x 0.386 0.64 2.03 27.2 2.0 31.2 1.65 34.7 2160
02670 0224-24P18AWG-W0BK8-06 24 7 x 0.386 0.64 2.03 29.4 2.0 33.4 1.65 36.9 2375
02671 0224-36P18AWG-W0BK8-06 36 7 x 0.386 0.64 2.03 34.9 2.0 38.9 2.03 43.2 3051

SIZE Order Pairs Strands X Ins. Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code Dia. thick. Weight
Thick. O.D. Dia O.D. Thick. O.D.
(AWG) No. No. No. X mm mm mm mm mm mm mm mm Kg/Km
02672 0224-01P16AWG-W0BK8-06 1 7 x 0.488 0.64 1.14 8.4 0.9 10.2 1.27 12.9 323
02673 0224-02P16AWG-W0BK8-06 2 7 x 0.488 0.64 1.14 12.3 0.9 14.1 1.65 17.6 509
02674 0224-04P16AWG-W0BK8-06 4 7 x 0.488 0.64 1.52 14.8 1.25 17.3 1.65 20.8 805
02675 0224-06P16AWG-W0BK8-06 6 7 x 0.488 0.64 1.52 18.5 1.6 21.7 1.65 25.2 1170
16 02676 0224-08P16AWG-W0BK8-06 8 7 x 0.488 0.64 1.52 19.5 1.6 22.7 1.65 26.2 1288
02677 0224-10P16AWG-W0BK8-06 10 7 x 0.488 0.64 2.03 22.5 1.6 25.7 1.65 29.2 1546
02678 0224-12P16AWG-W0BK8-06 12 7 x 0.488 0.64 2.03 24.2 2.0 28.2 1.65 31.7 1909
02679 0224-16P16AWG-W0BK8-06 16 7 x 0.488 0.64 2.03 27.2 2.0 31.2 1.65 34.7 2234
02680 0224-20P16AWG-W0BK8-06 20 7 x 0.488 0.64 2.03 29.9 2.0 33.9 1.65 37.4 2527
02681 0224-24P16AWG-W0BK8-06 24 7 x 0.488 0.64 2.03 32.3 2.0 36.3 1.65 39.8 2788

OVERALL SHIELDED TRIADS
SIZE Order Triads Strands X Ins. Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code Dia. thick. Thick. O.D. Dia O.D. Thick. O.D. Weight
(AWG) No. No. No. X mm mm mm mm mm mm mm mm Kg/Km
02682 0224-01T18AWG-W0BK8-06 1 7 x 0.386 0.64 1.14 8.2 0.9 10.0 1.27 12.7 319
.
6
02683 0224-02T18AWG-W0BK8-06 2 7 x 0.386 0.64 1.52 14.4 1.25 19 1.65 20.4 721
02684 0224-04T18AWG-W0BK8-06 4 7 x 0.386 0.64 1.52 16.1 1.25 18.6 1.65 22.1 561
02685 0224-06T18AWG-W0BK8-06 6 7 x 0.386 0.64 1.52 20.2 1.6 23.4 1.65 26.9 1256
18 02686 0224-08T18AWG-W0BK8-06 8 7 x 0.386 0.64 2.03 22.5 1.6 25.7 1.65 29.2 1487
02687 0224-10T18AWG-W0BK8-06 10 7 x 0.386 0.64 2.03 24.6 2.0 28.6 1.65 32.1 1886
02688 0224-12T18AWG-W0BK8-06 12 7 x 0.386 0.64 2.03 26.5 2.0 30.5 1.65 34.0 2072
02689 0224-16T18AWG-W0BK8-06 16 7 x 0.386 0.64 2.03 29.9 2.0 33.9 1.65 37.4 2411
02690 0224-20T18AWG-W0BK8-06 20 7 x 0.386 0.64 2.03 32.8 2.0 36.8 1.65 40.4 2716
SIZE Order Triads Strands X Ins. Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code Dia. thick. Weight
Thick. O.D. Dia O.D. Thick. O.D.
(AWG) No. No. No. X mm mm mm mm mm mm mm mm Kg/Km
02691 0224-01T16AWG-W0BK8-06 1 7 x 0.488 0.64 1.14 8.8 0.9 10.6 1.27 13.4 356
02692 0224-02T16AWG-W0BK8-06 2 7 x 0.488 0.64 1.52 15.7 1.25 18.2 1.65 21.4 808
02693 0224-04T16AWG-W0BK8-06 4 7 x 0.488 0.64 1.52 17.6 1.6 20.8 1.65 24.3 1122
02694 0224-06T16AWG-W0BK8-06 6 7 x 0.488 0.64 2.03 23.3 2.0 27.3 1.65 30.8 1764
16
02695 0224-08T16AWG-W0BK8-06 8 7 x 0.488 0.64 2.03 24.6 2.0 28.6 1.65 32.1 1942
02696 0224-10T16AWG-W0BK8-06 10 7 x 0.488 0.64 2.03 26.9 2.0 30.9 1.65 34.4 2195
02697 0224-12T16AWG-W0BK8-06 12 7 x 0.488 0.64 2.03 29.1 2.0 33.1 1.65 36.6 2417
02698 0224-16T16AWG-W0BK8-06 16 7 x 0.488 0.64 2.03 32.9 2.0 36.9 1.65 40.4 2825
