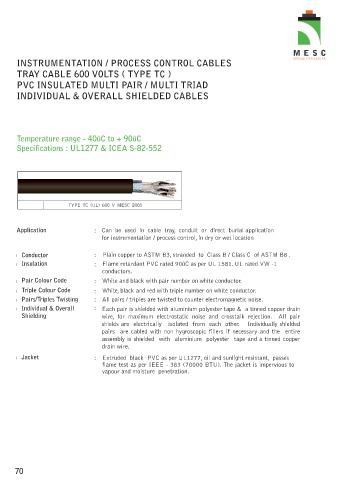

INSTRUMENTATION / PROCESS CONTROL CABLES

TRAY CABLE 600 VOLTS ( TYPE TC )
PVC INSULATED MULTI PAIR / MULTI TRIAD
INDIVIDUAL & OVERALL SHIELDED CABLES

Temperature range - 40ûC to + 90ûC
Specifications : UL1277 & ICEA S-82-552

TYPE TC (UL) 600 V MESC 2005

Application : Can be used in cable tray, conduit or direct burial application
for instrumentation / process control, in dry or wet location

l Conductor : Plain copper to ASTM B3, stranded to Class B / Class C of ASTM B8 .
l Insulation : Flame retardant PVC rated 90ûC as per UL 1581. UL rated VW -1
conductors.
l Pair Colour Code : White and black with pair number on white conductor.
l Triple Colour Code : White, black and red with triple number on white conductor.
l Pairs/Triples Twisting : All pairs / triples are twisted to counter electromagnetic noise.
l Individual & Overall : Each pair is shielded with aluminium polyester tape & a tinned copper drain
Shielding wire, for maximum electrostatic noise and crosstalk rejection. All pair
shields are electrically isolated from each other. Individually shielded
pairs are cabled with non hygroscopic fillers if necessary and the entire
assembly is shielded with aluminium polyester tape and a tinned copper
drain wire.
l Jacket : Extruded black PVC as per UL1277, oil and sunlight resistant, passes
flame test as per IEEE - 383 (70000 BTU). The jacket is impervious to
vapour and moisture penetration.
