I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 109

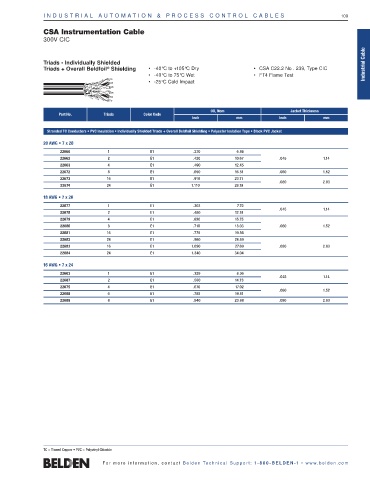

CSA Instrumentation Cable
300V CIC

Triads • Individually Shielded Industrial Cable
®
Triads + Overall Beldfoil Shielding • -40°C to +105°C Dry • CSA C22.2 No . 239, Type CIC
• -40°C to 75°C Wet • FT4 Flame Test
• -25°C Cold Impact

OD, Nom Jacket Thickness
Part No. Triads Color Code
Inch mm Inch mm
Stranded TC Conductors • PVC Insulation • Individually Shielded Triads + Overall Beldfoil Shielding • Polyester Isolation Tape • Black PVC Jacket
20 AWG • 7 x 28
22660 1 E1 .270 6.86
22662 2 E1 .420 10.67 .045 1.14
22663 4 E1 .490 12.45
22672 8 E1 .650 16.51 .060 1.52
22673 16 E1 .910 23.11
.080 2.03
22674 24 E1 1.110 28.19
18 AWG • 7 x 26
22677 1 E1 .303 7.70
.045 1.14
22678 2 E1 .480 12.19
22679 4 E1 .620 15.75
22680 8 E1 .710 18.03 .060 1.52
22681 16 E1 .770 19.56
22682 24 E1 .980 24.89
22683 16 E1 1.090 27.69 .080 2.03
22684 24 E1 1.340 34.04
16 AWG • 7 x 24
22603 1 E1 .329 8.36
.045 1.14
22687 2 E1 .580 14.73
22675 4 E1 .670 17.02
.060 1.52
22688 6 E1 .780 19.81
22689 8 E1 .940 23.88 .080 2.03

TC = Tinned Copper • PVC = Polyvinyl Chloride

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
