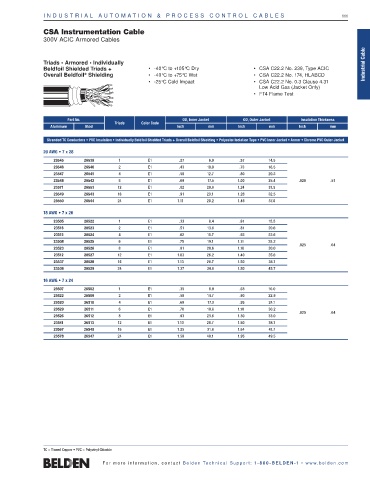

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 111

CSA Instrumentation Cable
300V ACIC Armored Cables

Triads • Armored • Individually Industrial Cable
Beldfoil Shielded Triads + • -40°C to +105°C Dry • CSA C22.2 No. 239, Type ACIC
®
Overall Beldfoil Shielding • -40°C to +75°C Wet • CSA C22.2 No. 174, HLABCD
• -25°C Cold Impact • CSA C22.2 No. 0.3 Clause 4.31
Low Acid Gas (Jacket Only)
• FT4 Flame Test

Part No. OD, Inner Jacket OD, Outer Jacket Insulation Thickness
Triads Color Code
Aluminum Steel Inch mm Inch mm Inch mm
Stranded TC Conductors • PVC Insulation • Individually Beldfoil Shielded Triads + Overall Beldfoil Shielding • Polyester Isolation Tape • PVC Inner Jacket • Armor • Chrome PVC Outer Jacket

20 AWG • 7 x 28
23545 26539 1 E1 .27 6.9 .57 14.5
23546 26540 2 E1 .43 10.9 .73 18.5
23547 26541 4 E1 .50 12.7 .80 20.3
23548 26542 8 E1 .69 17.5 1.00 25.4 .020 .51
23571 26553 12 E1 .82 20.8 1.24 31.5
23549 26543 16 E1 .91 23.1 1.28 32.5
23550 26544 24 E1 1.11 28.2 1.48 37.6

18 AWG • 7 x 26
23505 26522 1 E1 .33 8.4 .61 15.5
23516 26523 2 E1 .51 13.0 .81 20.6
23515 26524 4 E1 .62 15.7 .93 23.6
23508 26525 6 E1 .75 19.1 1.11 28.2
.025 .64
23523 26526 8 E1 .81 20.6 1.18 30.0
23512 26527 12 E1 1.03 26.2 1.40 35.6
23537 26528 16 E1 1.13 28.7 1.50 38.1
23536 26529 24 E1 1.37 34.8 1.80 45.7

16 AWG • 7 x 24
23507 26502 1 E1 .35 8.9 .63 16.0
23522 26509 2 E1 .58 14.7 .90 22.9
23520 26510 4 E1 .68 17.3 .95 24.1
23529 26511 6 E1 .78 19.8 1.19 30.2
.025 .64
23526 26512 8 E1 .93 23.6 1.30 33.0
23541 26513 12 E1 1.13 28.7 1.50 38.1
23567 26545 16 E1 1.25 31.8 1.64 41.7
23578 26547 24 E1 1.58 40.1 1.95 49.5

TC = Tinned Copper • PVC = Polyvinyl Chloride
